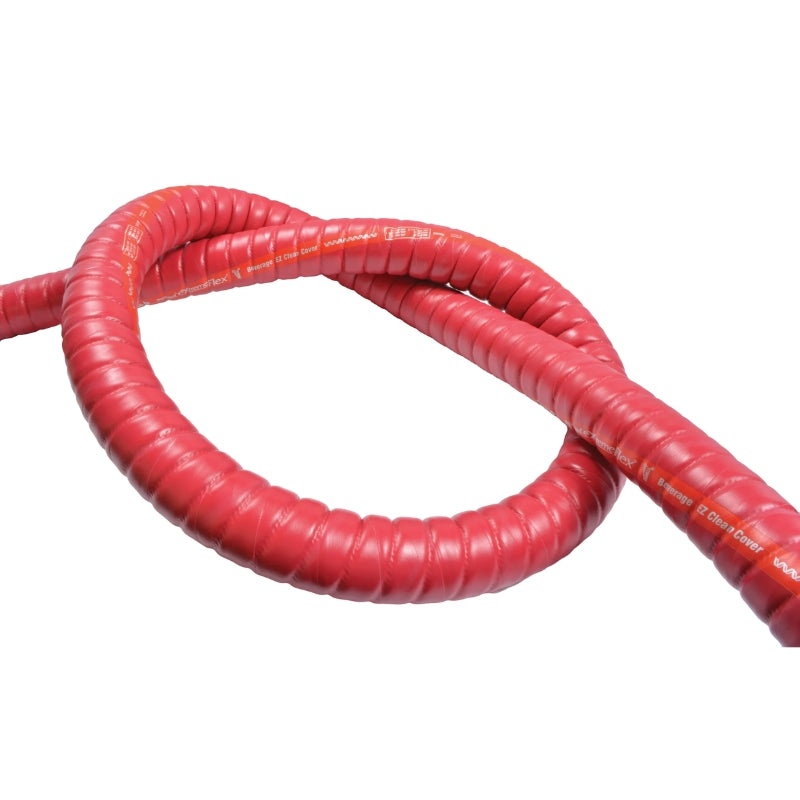

Beverage Hose Assemblies 38mm

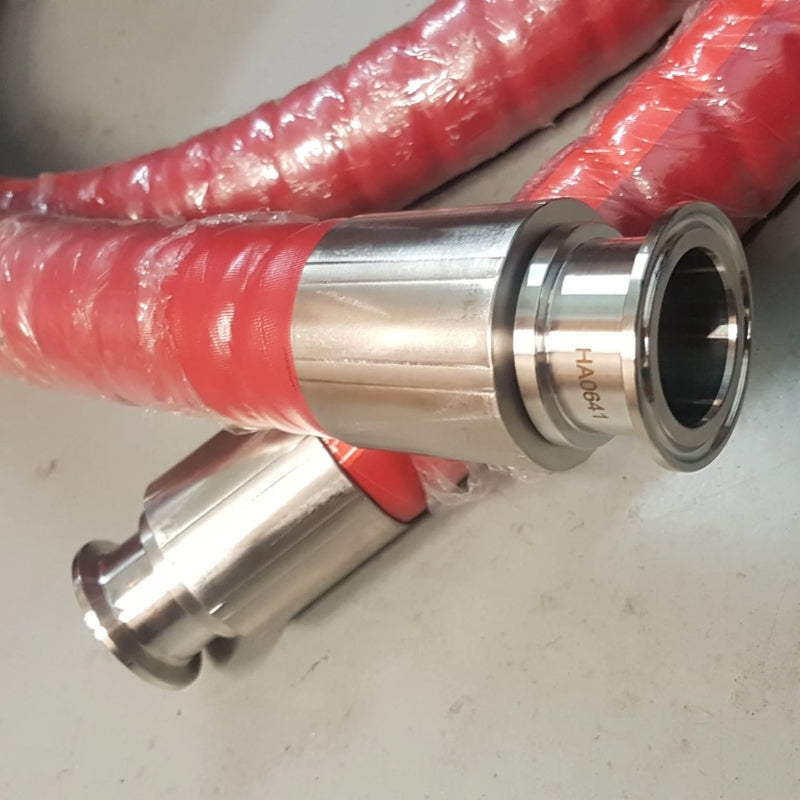

A finished 38 mm beverage line rather than a length of hose: each assembly is fitted and crimped with 38 mm Triclover ends, ready to clamp into sanitary plant. Thirty-eight millimetres is the most common inside diameter on beverage manufacturing machines, which is why the range is built around it. Supplied in 2.5 m, 3 m, 4 m, 5 m, 6 m and 7 m lengths.

Key features

• 38 mm inside diameter, crimped with 38 mm Triclover ends
• White synthetic rubber tube, FDA/USDA compliant and to 3-A sanitary standard 18-3
• Maximum working pressure 150 psi
• Temperature range -32°C to 100°C
• Spiral piled synthetic cord reinforcement with a galvanised wire helix
• Red synthetic rubber cover with an Ezi-Clean finish

Applications

• Beer, wine and spirit transfer in a production hall
• Water and CIP circuits inside the temperature range
• Connecting pumps, filters and fillers on sanitary plant
• Replacing a worn line on a beverage machine without making up ends on site

Compatibility and fitting

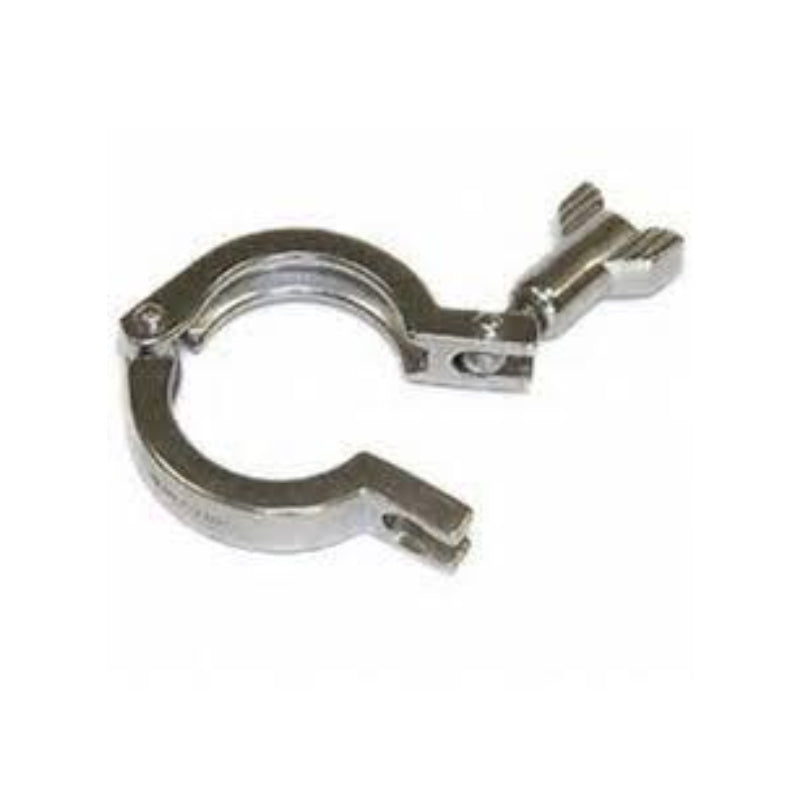

• Triclover ends need a matching clamp and gasket; a 38 mm Triclover single pin clamp is stocked as a separate variant on this page
• The galvanised wire helix keeps the bore open on a pump inlet, so the assembly works on suction as well as discharge
• For bulk hose cut by the metre instead, see 38mm rubber food suction hose
• Other food and beverage lines: food and beverage hose

Can I get a length that is not listed?

The stocked assemblies run 2.5 m to 7 m. Sizes and lengths outside that are made to order, so contact us with the bore, the length and the end fitting you need and we will quote the assembly.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
