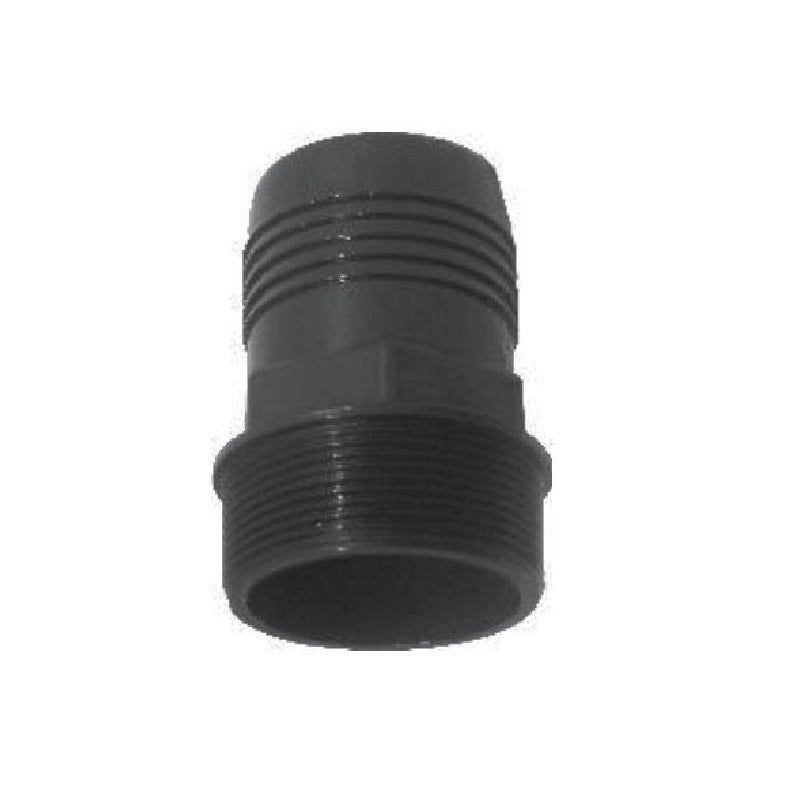

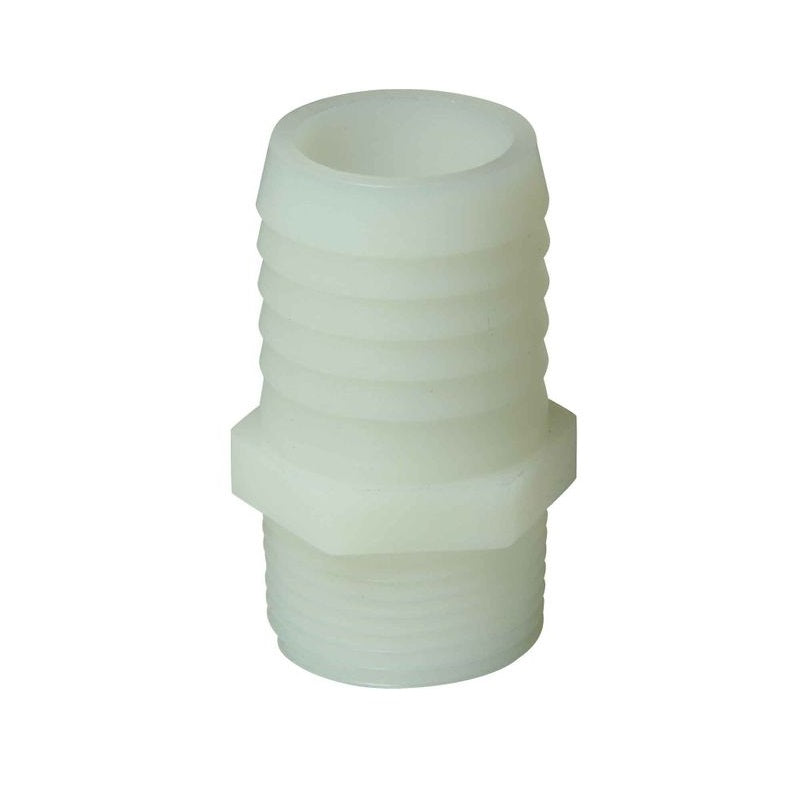

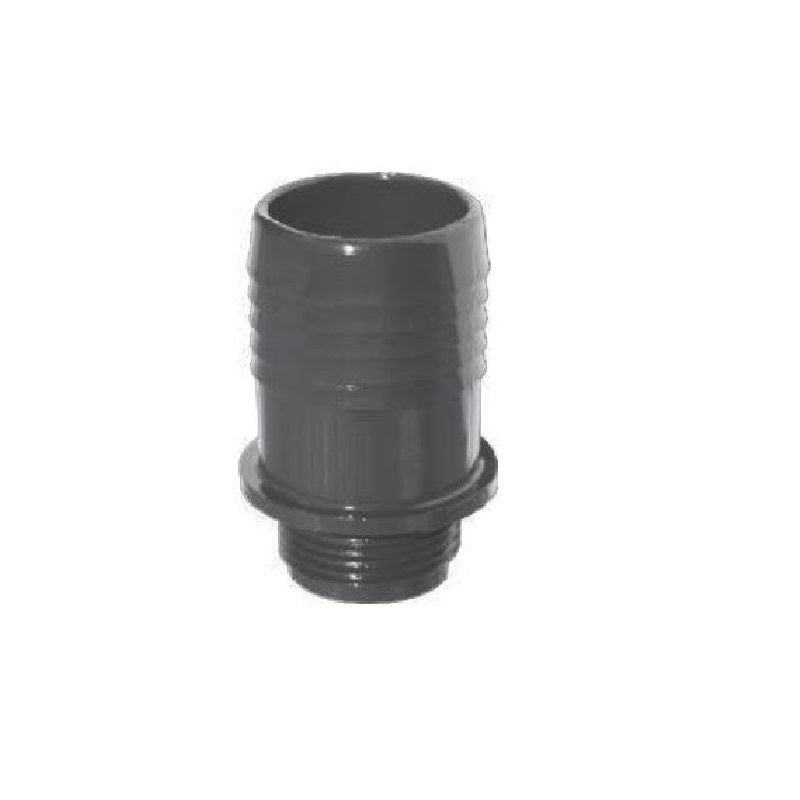

Nylon Hose Tail x BSP Male

The nylon hose tail is the most used fitting in the range: a barb for the hose, a male BSP thread for the port. It does the same job as a brass tail, and it is chosen over brass wherever corrosion is the problem rather than pressure, which on rural and irrigation water is most of the time.

Key features

• Barbed tail for hose, male BSP thread for a female port
• Straight through bore for minimal restriction
• Glass fibre reinforced nylon, also available in 100% polypropylene on request
• Certified to AS/NZS 4020, so it is approved for potable water
• Precision heavy duty tapered BSP threads
• 1600 kPa at 20°C for 6 mm to 50 mm, 1200 kPa at 65 mm, 1000 kPa from 80 mm to 100 mm
• Will not corrode, unlike brass or steel, in fertiliser, bore water and coastal air

Applications

• Irrigation and rural water systems
• Rainwater and poly tank plumbing
• Pump and filter connections
• Stock and trough water lines
• Garden and nursery reticulation

Compatibility and fitting

• Size the barb on the hose bore and the thread on the port independently
• Clamp the hose with a hose clamp, two under pressure
• Seal threads with a thread sealing paste or thread tape
• Nylon threads strip more easily than brass: tighten by hand and finish with a light nip, never a long lever
• Check the pressure band for the size you are buying, as it steps down above 50 mm

Nylon or brass?

Nylon for corrosive water, fertiliser lines and anywhere weight matters; brass for higher pressure, heat, and where the fitting will be knocked about. Nylon is also far cheaper, which matters when a system uses fifty of them.

Is it really safe for drinking water?

Yes. The range is certified to AS/NZS 4020, which is the Australian test for products in contact with drinking water. That is why it appears on rainwater tanks and stock troughs.

The full range is in nylon fittings.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
