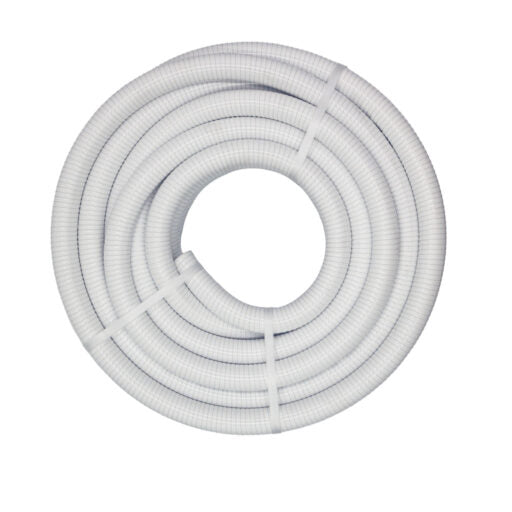

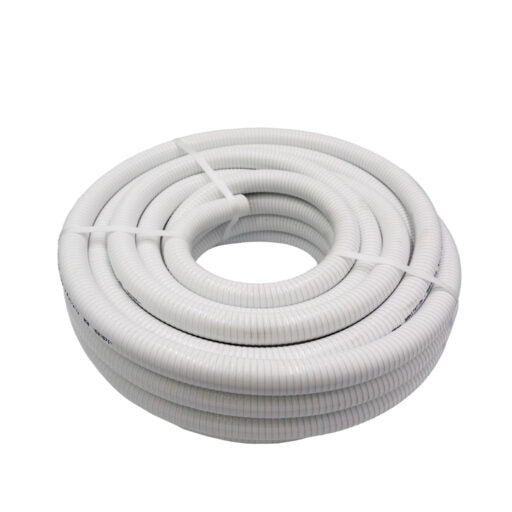

20mm White Marine Sanitation Hose

Part PSHSW20 is the smallest bore in the white marine sanitation range: a smooth bore toilet waste hose with a nominal 19 mm inside diameter and a 25.8 mm outside diameter. The wall is a white PVC blend carrying 20% nitrile content, and on a sanitation line that is the number that counts, because odour escapes through the hose wall rather than past the clamps. A rigid PVC helix holds the bore open on vent lines and short pump connections.

Key features

• Nominal inside diameter 19 mm, outside diameter 25.8 mm
• White PVC with 20% nitrile content, for resistance to odour permeation
• Rigid PVC helix with a smooth bore inside it
• Working pressure 131 psi at 20°C
• Operating temperature -5°C to +60°C
• Minimum bend radius 110 mm
• Cut per metre from 2 m, or supplied as a 20 m coil

Applications

• Vent lines between a holding tank and the hull vent
• Small pump connections on a compact toilet installation
• Sanitation discharge on caravans and recreational vehicles
• Tight locker runs where the hose has to turn inside 110 mm

Compatibility and fitting

• Measure the spigot, not the product name: this size runs a 19 mm bore
• Clamp every joint with stainless worm drive clamps from the Tridon clamp range
• Hull vents and through-hull outlets sit in skin fittings and marine products
• 25 mm and 38 mm bores are in the white marine sanitation hose range
• Grey water and shower drains use marine and RV drain hose

Why does the nitrile content matter?

Odour does not come out of the joints, it passes through the wall of the hose. The supplier specifies a high nitrile content PVC blend, 20% nitrile here, for resistance to odour permeation on toilet applications. A plain PVC hose in the same bore has nothing doing that job.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
