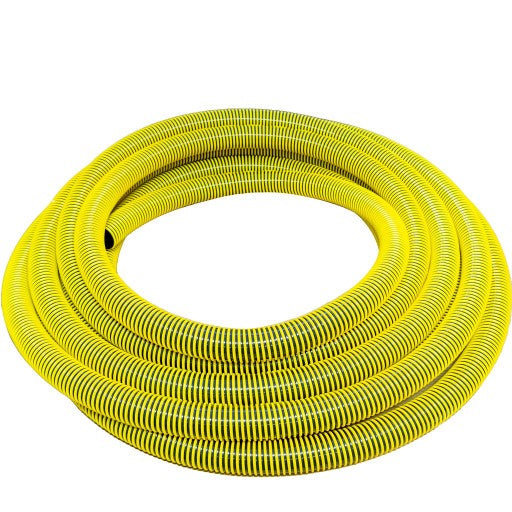

63mm Yellow Tail Abrasive Suction Hose

63 mm is the in-between size hire fleets and contractors keep for pumps that fall between a 50 mm and a 76 mm inlet, and PSHYT063 covers it without adapting. Outside diameter is 79.6 mm and the minimum bend radius steps out to 380 mm, which is worth checking against the space around the pump. The construction is a smooth black high nitrile PVC bore with a raised yellow rigid PVC helix, rated 0.4 MPa (58 psi) at 20°C and 600 mm Hg of vacuum.

Key features

• 63 mm inside diameter, 79.6 mm outside diameter
• Smooth high nitrile PVC bore with a raised yellow rigid helix
• Working pressure 0.4 MPa (58 psi) at 20°C
• Vacuum rating 600 mm Hg
• Minimum bend radius 380 mm
• Operating temperature -5°C to +60°C
• Good UV stability for hose left out on site
• Cut 2 m to 15 m, or a 20 m coil

Applications

• Hire fleet and contractor pumps with a 63 mm inlet
• Slurry and sludge suction on civil works
• Waste truck and vacuum tanker lines
• Mild chemical recovery
• High volume air seeder runs

Compatibility and fitting

• Takes 63 mm camlocks clamped over the helix; bands must suit the 79.6 mm outside diameter
• Do not force a bend tighter than 380 mm at the pump inlet, or the helix will distort and the bore will neck
• Other bores are on Yellow Tail abrasive suction hose

Why does an abrasive hose need a thicker wall?

Because the wear is on the inside. Sand and slurry scour the bore as they pass, and the high nitrile compound plus the extra wall are what buy service life. A standard water suction hose in the same bore wears through from the inside first.
