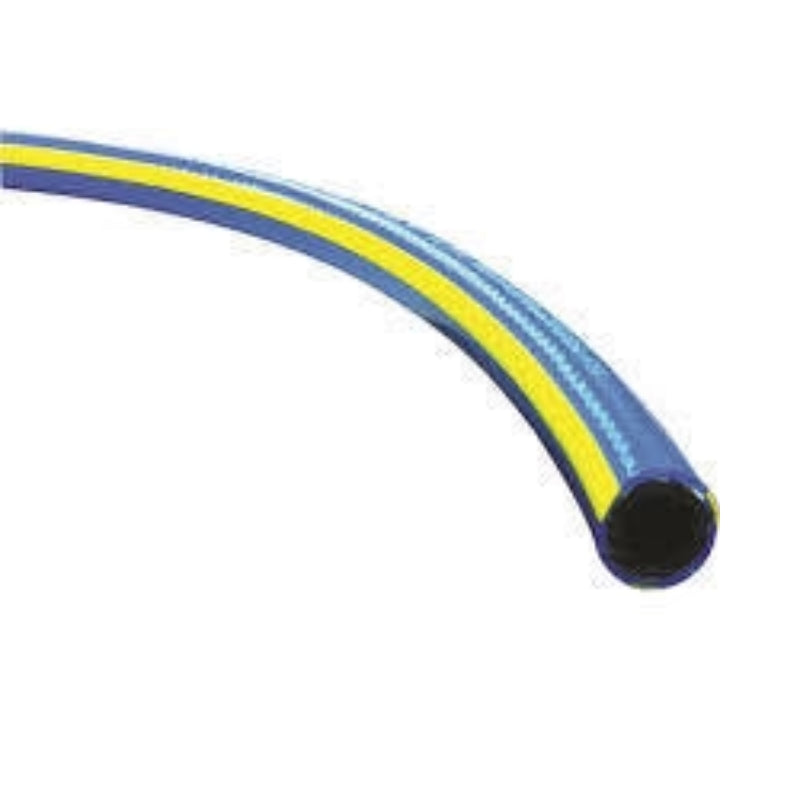

6mm Blue/Yellow PVC Air Hose

6 mm blue and yellow PVC air hose (part PHM06) is the smallest bore in the range, for air tools and small pneumatic drops where the hose is handled all day and weight at the tool matters. It is built from a black PVC smooth inner with high tenacity polyester yarn reinforcement and a blue PVC cover with a yellow stripe, and it stays flexible in the cold where cheap air hose goes stiff.

Key features

• Nominal inside diameter 6 mm, outside diameter 12 mm
• Working pressure 1.6 MPa (230 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS 2554 Class B
• High tenacity polyester yarn reinforcement
• Abrasion resistant cover with a smooth finish
• Flexible at low temperatures
• Cut to length or supplied in coils (20 m, 100 m and 300 m)

Applications

• Air tools and small pneumatics
• Tyre inflation lines
• Bench and assembly rigs
• Spray guns at low volume
• Instrument and control air

Compatibility and fitting

• Fits a 6 mm hose tail; secure with a hose clamp, two per end on a pressurised line
• Quick connect couplings to suit are in the Nitto coupling range
• Also available made up with fittings, ready to plug in
• For oil resistant service, rubber multi purpose hose is the better choice

Is 6 mm enough for an air tool?

For blow guns, staplers and tyre work, yes. For a grinder or a sander drawing continuously, the small bore is what starves the tool, so step up to 10 mm or 12 mm.

Bores from 6 mm to 25 mm are in the blue and yellow air hose range.
