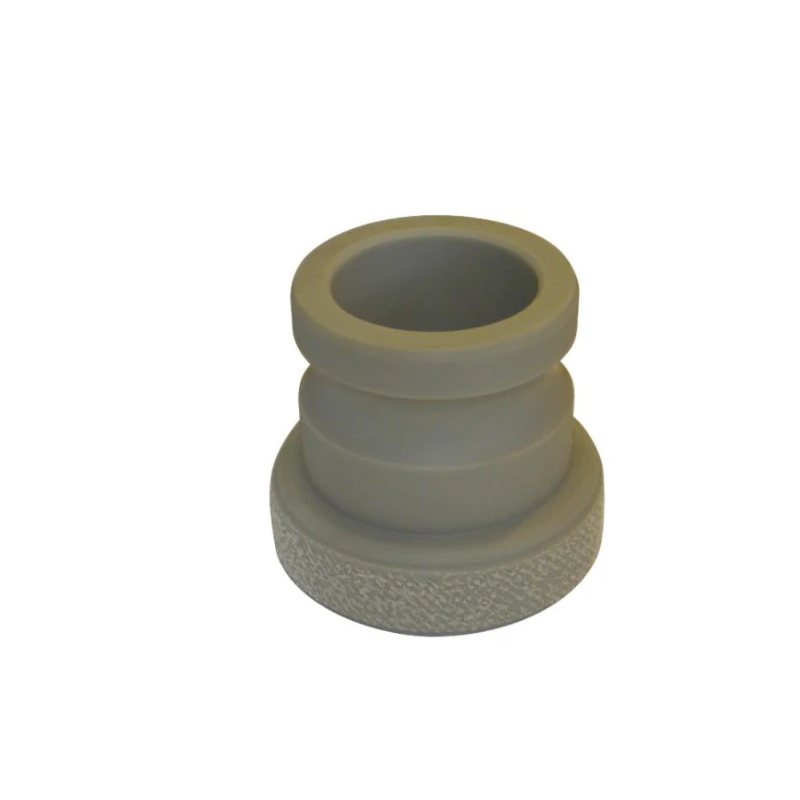

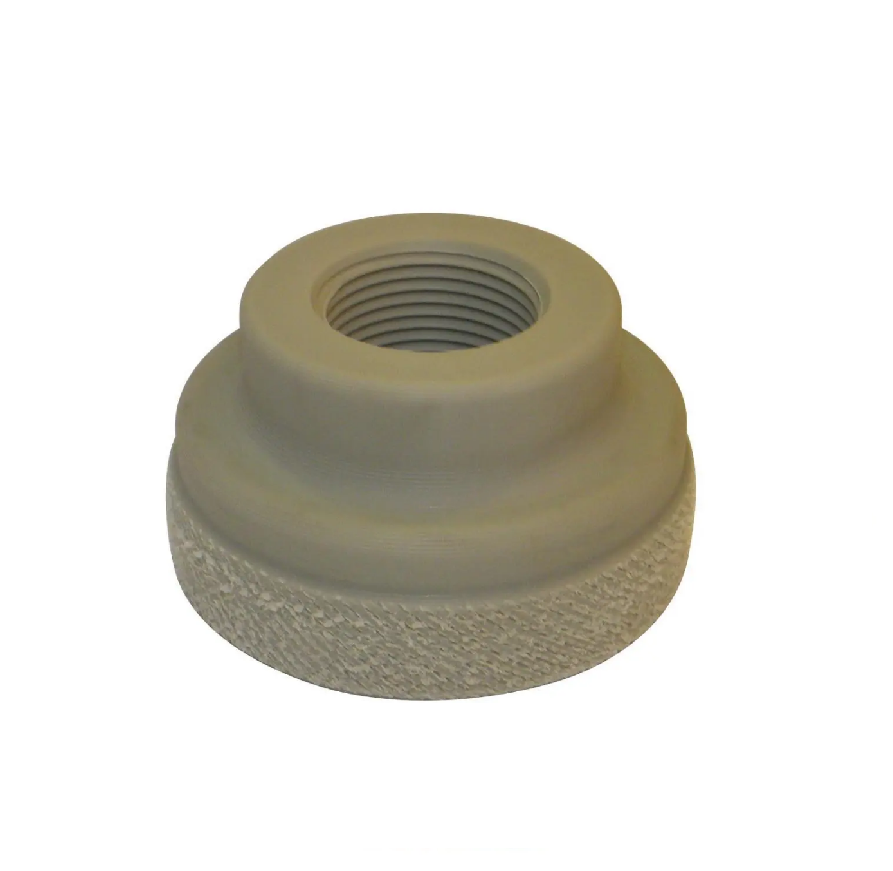

IBC (Bulky Bin) Adapters
Prices include GST. Shipping calculated at checkout.
Pickup available at Brisbane
Usually ready in 2-4 days
- Australia-wide delivery
- Brisbane warehouse pickup
- Secure checkout
- (07) 3890 3359
Need a large quantity? Contact our trade team for pricing.
Description
An IBC adaptor converts the coarse thread on a 1000 litre bulky bin outlet into something you can actually plumb to: a BSP thread, a camlock, or a hose tail. Without one, an IBC is a container with a tap on it; with one, it is part of a transfer system.
Key features
- Converts the IBC bulky bin outlet thread to a standard connection
- Available to suit BSP thread, camlock and hose tail connections
- Nylon resists the chemicals and fertilisers IBCs usually carry
- Removes and refits as bins are swapped out
- Glass fibre reinforced nylon, also available in 100% polypropylene on request
- Certified to AS/NZS 4020, so it is approved for potable water
- Precision heavy duty tapered BSP threads
- 1600 kPa at 20°C for 6 mm to 50 mm, 1200 kPa at 65 mm, 1000 kPa from 80 mm to 100 mm
- Will not corrode, unlike brass or steel, in fertiliser, bore water and coastal air
Applications
- Bulk water storage and transfer
- Liquid fertiliser and chemical decanting
- Farm and spray tank filling
- Wash down water supply from an IBC
- Temporary and site water systems
Compatibility and fitting
- Check the outlet thread on your bin, as IBC cage outlets are not all the same
- Pair with a camlock for quick connect transfer
- Confirm chemical compatibility for what the bin is carrying before fitting
- Seal threads with a thread sealing paste or thread tape
- Nylon threads strip more easily than brass: tighten by hand and finish with a light nip, never a long lever
- Check the pressure band for the size you are buying, as it steps down above 50 mm
Are all IBC outlets the same thread?
No, and that catches people out. Bins from different makers use different coarse threads on the outlet, so check yours against the adaptor before ordering.
Can I use an IBC for drinking water?
The fitting is AS/NZS 4020 rated, but the bin's own history decides that. A bin that has carried chemicals is not made potable by a certified adaptor.
The full range is in nylon fittings.
Product specifications
- Design
- IBC bulky bin outlet adaptor
- Usage
- Water, irrigation, tank and general fluid transfer
- Standard
- AS/NZS 4020, suitable for potable water
- Material
- Glass fibre reinforced nylon (100% polypropylene available on request)
- Tread type
- Precision heavy duty tapered BSP
- Max pressure
- 1600 kPa for 6 mm to 50 mm, 1200 kPa for 65 mm, 1000 kPa for 80 mm to 100 mm at 20°C
Shipping and returns
Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
