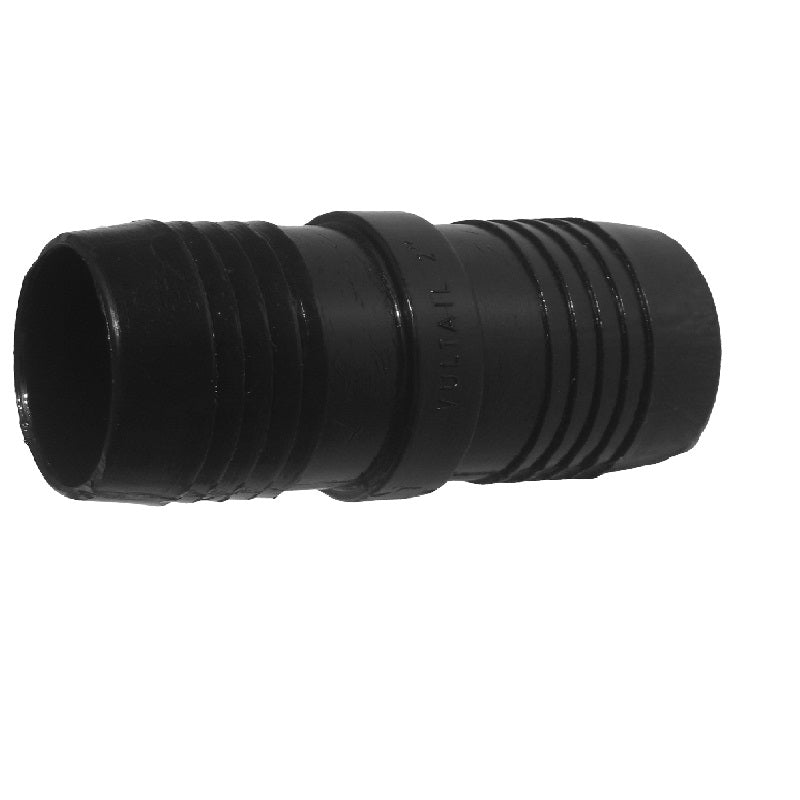

Nylon Hose Joiner

Two barbs back to back. A hose joiner repairs a hose that has split or been cut, and joins two shorter lengths into the run you actually need. In nylon it costs a fraction of the brass equivalent, which matters on irrigation where joiners get buried and forgotten.

Key features

• Barbed at both ends for a hose to hose joint
• Repairs damaged hose without replacing the run
• Straight through bore
• Glass fibre reinforced nylon, also available in 100% polypropylene on request
• Certified to AS/NZS 4020, so it is approved for potable water
• Precision heavy duty tapered BSP threads
• 1600 kPa at 20°C for 6 mm to 50 mm, 1200 kPa at 65 mm, 1000 kPa from 80 mm to 100 mm
• Will not corrode, unlike brass or steel, in fertiliser, bore water and coastal air

Applications

• Irrigation and rural water repairs
• Rainwater and tank plumbing
• Garden and nursery lines
• Stock water systems
• Temporary and seasonal runs

Compatibility and fitting

• Cut back to clean undamaged hose before joining
• Clamp both sides with a hose clamp
• Seal threads with a thread sealing paste or thread tape
• Nylon threads strip more easily than brass: tighten by hand and finish with a light nip, never a long lever
• Check the pressure band for the size you are buying, as it steps down above 50 mm

Will a joiner leak once it is buried?

Not if it is clamped properly. What fails buried is hose that was pushed on cold and split, so warm the hose end before fitting and use two clamps a side.

Equal or reducing?

Equal joins the same bore both sides. If the two hoses differ, use the reducing joiner rather than forcing the larger hose onto a small barb.

The full range is in nylon fittings.
