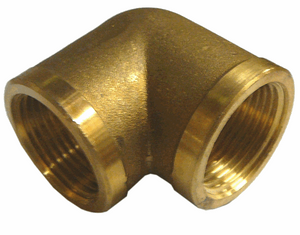

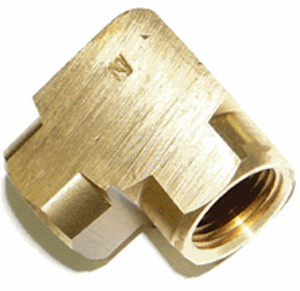

Screwed Brass Elbow Female Female

Screwed Brass Elbow Female Female | No. 34 BSP/NPT 90° Fitting for Fluid & Gas Systems

The Screwed Brass Elbow Female Female (Standard Brass No. 34) is a high-quality 90-degree fitting designed for connecting two male-threaded pipes or fittings at a right angle. Ideal for use in oil, fuel, water, natural gas, and lubrication lines, this elbow is made from premium-grade brass to ensure durability and corrosion resistance under pressure.

Compatible with both BSP and NPT thread standards, it offers flexible installation in both local and international systems. This fitting supports high-pressure and high-temperature environments, making it suitable for a wide range of industrial and commercial applications.

Key Applications

• Oil and fuel transfer systems

• Water and gas line redirection

• Compressed air and lubrication setups

• General plumbing and industrial piping

Product Features

• Manufactured from high-strength, corrosion-resistant brass

• 90-degree elbow with dual female threads

• Supports both BSP and NPT thread configurations

• Pressure rated to 3500 kPa / 500 PSI

• Temperature range from 0°C to 120°C

• Easy to install with spanner-friendly hex ends

Technical Specifications

• Material: Brass

• Model: Brass No. 34 – Female Elbow

• Design: 90-degree elbow (Female x Female)

• Thread Types: BSP and NPT

• Available Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"

• TPI (BSP): 28, 19, 14, 11

• TPI (NPT): 27, 18, 14, 11.5

• Pressure Rating: Up to 3500 kPa (500 PSI)

• Temperature Rating: 0°C to 120°C

Why Choose This Product?

Designed for demanding systems, the Screwed Brass Elbow Female Female delivers a secure, leak-resistant connection at 90 degrees. It’s a practical and dependable fitting trusted across plumbing, automotive, and industrial applications.

Size Table
