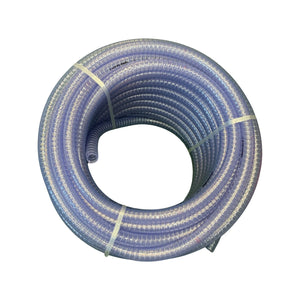

20mm Clear Wire Helix Food Suction Hose

Twenty millimetre bore on a 27 mm outside diameter: one of the two sizes most small food and beverage plants keep on the shelf for pump suction and general transfer. The wall is clear, so an operator can see whether the line is running product, air or nothing at all. Working pressure 75 psi at 20°C, stock code HELI020.

Key features

• 20 mm inside diameter, 27 mm outside diameter
• 75 psi at 20°C
• -5°C to +60°C

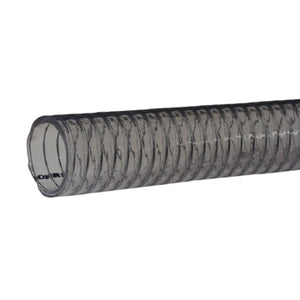

• Transparent food grade PVC with an embedded steel helix wire
• FDA-EU 10/2011 A+B+C and AS 2070
• Cut from 1 m, coils at 30 m and 60 m

Applications

• Pump suction on small transfer and racking pumps
• Drawing off drums and IBCs of juice, syrup or wine
• Cellar transfer where a short, clear run is wanted
• Drinking water and food process make-up lines

Compatibility and fitting

• Order by bore to match the pump port; a 20 mm hose on a 25 mm inlet will throttle the pump
• Barbed tails and clamps: hose clamps and stainless steel fittings
• Quick-release ends for hose that is moved between vessels: camlock couplings
• Compare the range at food and beverage hose

How long a suction run can it take?

Keep it short and as straight as the layout allows. The helix stops the wall collapsing, but every extra metre and every bend adds resistance the pump has to overcome, and a long 20 mm suction line is the usual reason a small pump loses prime.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
