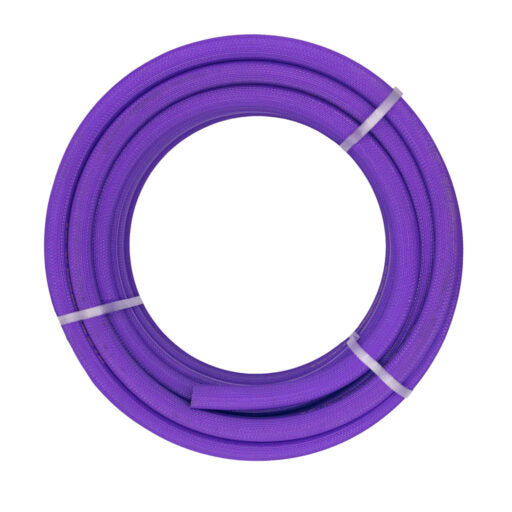

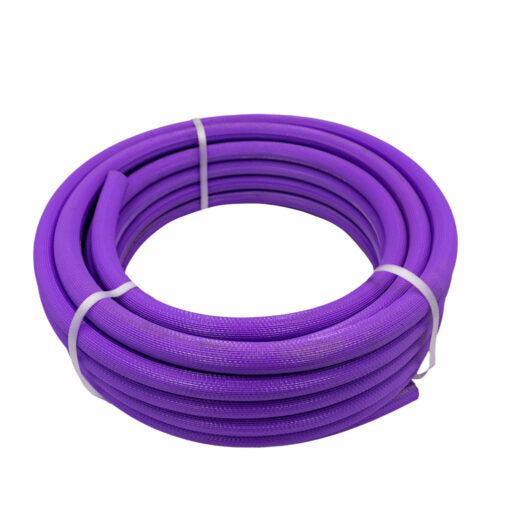

25mm Purple Sullage Hose PVC Pressure

25 mm is the size most caravans use for the main grey water outlet, and PHPE25 is the hose people mean when they ask for sullage hose by name. It is a pressure type construction: a smooth black PVC bore, high tenacity polyester yarn reinforcement and a purple UV stabilised ribbed cover, rated 1.6 MPa (232 psi) at 20°C to a 4:1 safety factor. That rating is why it also ends up on concrete trucks and batching plants carrying reclaimed water.

Key features

• 25 mm nominal inside diameter
• Smooth black PVC inner with a ribbed purple UV stabilised outer
• High tenacity polyester yarn reinforcement
• Working pressure 1.6 MPa (232 psi) at 20°C
• 4:1 pressure safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS/NZS 2554 Class B
• Sold in 5 m, 10 m, 15 m, 20 m, 25 m and 50 m lengths, or a 100 m roll

Applications

• Main grey water outlet on caravans and motorhomes
• Camp kitchen and shower drains at a park site
• Concrete truck and agitator wash water lines
• Batching plant and quarry reclaimed water
• Site shed and amenity block waste runs

Compatibility and fitting

• Slides onto a 25 mm hose tail; caravan outlets are commonly threaded, so check whether you need an adaptor from caravan plumbing fittings
• Camlock ends make it quick to disconnect at a dump point; see camlock fittings
• The 20 mm size is on purple sullage hose

Why is sullage hose purple?

Lilac or purple is the recognised colour for reclaimed and non-potable water in Australia. Using it for grey water makes the line obvious on a busy site and keeps it from being confused with a drinking water hose.

Is 25 mm the bore or the outside?

The bore. A 25 mm sullage hose slips over a 25 mm tail; the ribbed outer sits proud of that, so size clamps to the hose rather than to the fitting.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
