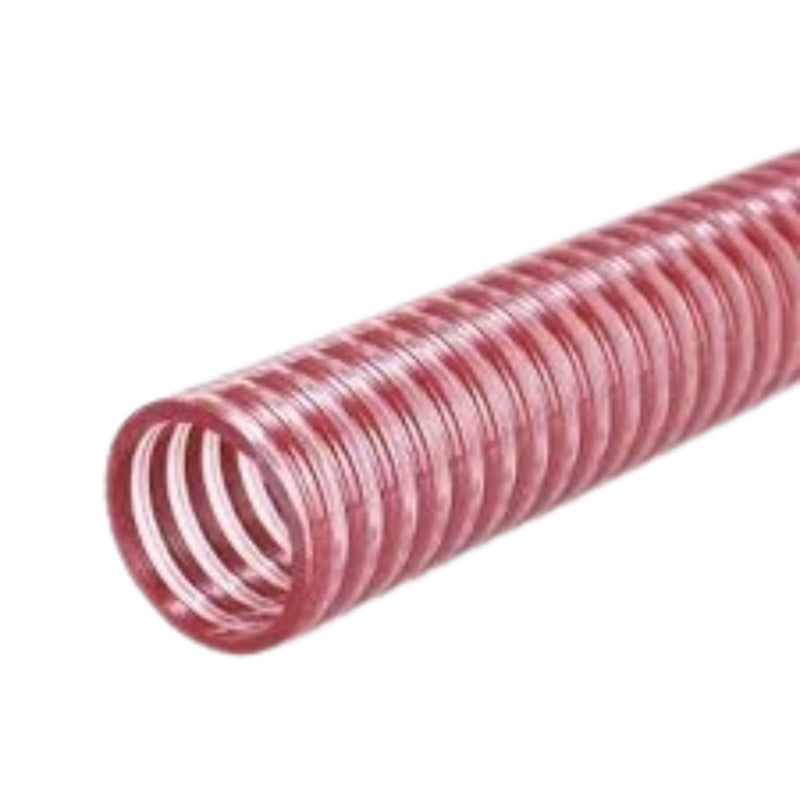

25mm PVC Food Suction Hose Red/Clear

A heavy duty smooth bore hose for fruit juices, wines and liquors up to 28% proof, with a clear wall so the product is visible and a red PVC helix holding the bore round. At 25 mm inside and 31.9 mm outside it takes 0.9 MPa (130 psi) at 20°C, the highest working pressure in the red and clear range. Stock code PSHRC025.

Key features

• 25 mm bore, 31.9 mm outside diameter
• Working pressure 0.9 MPa (130 psi) at 20°C
• Operating temperature -5°C to +60°C
• Phenol and phthalate free compound, suitable for honey and dairy products
• Conforms to AS/NZS 2070, USA FDA CFR21 and EU 2002-72-EC

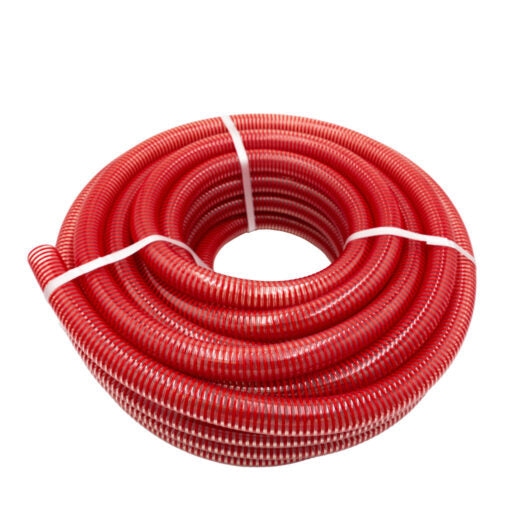

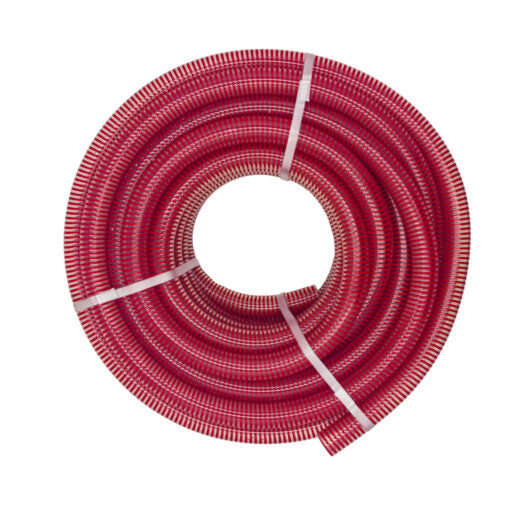

• Cut lengths from 2 m to 15 m, or a 20 m coil

Applications

• Racking and small-batch wine transfer in a cellar
• Drawing juice, honey or syrup off drums and IBCs
• Milk and dairy transfer on small plant
• Cannery and food processing suction lines
• Potable water on food premises

Compatibility and fitting

• The red helix is structural, not decoration: it stops the wall closing when a pump pulls a vacuum on the line, which a plain delivery hose cannot do
• Clamp over a 25 mm barbed tail using a band sized to 31.9 mm — hose clamps
• Stainless ends for food rooms: stainless steel fittings
• Larger bores in the same hose: red and clear PVC food suction hose

What alcohol strength is it rated for?

The supplier rates this hose for wines and liquors up to 28% proof. Above that, check the product with us before running it, because spirit strength is the limit that decides whether a PVC wall is the right choice.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
