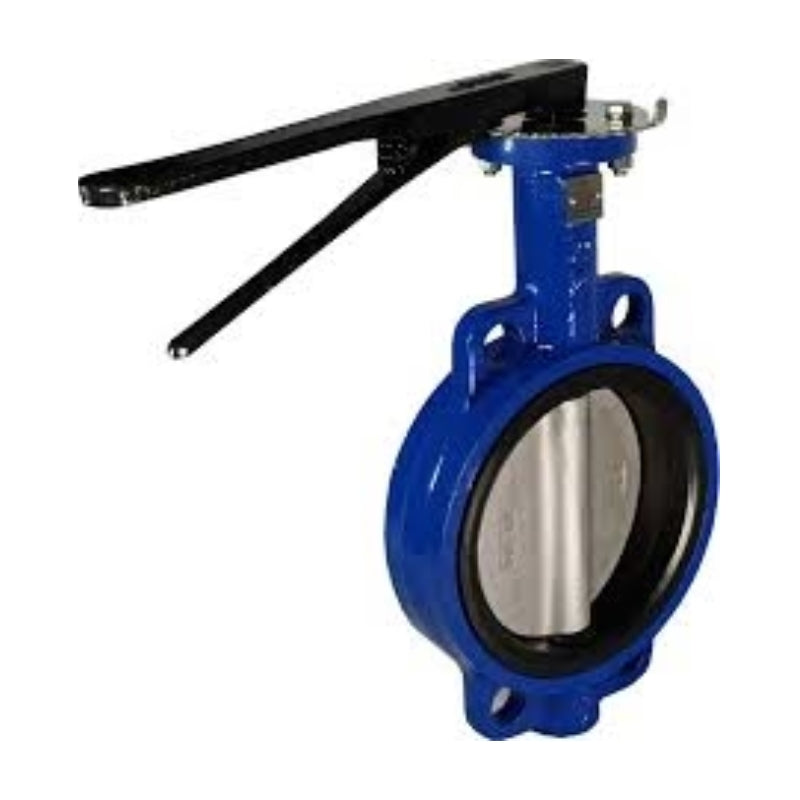

316 S/S Disc Butterfly Valve

A butterfly valve with a cast iron body and a 316 stainless steel disc, for isolating or regulating flow in larger pipelines where a ball valve of the same bore would be an unreasonable lump of metal. Quarter turn operation, seven sizes covering 50 mm to 200 mm: BUTFLY050 through BUTFLY200.

Key features

• Cast iron body
• 316 stainless steel disc
• Quarter turn operation
• Listed for line isolation or throttling
• Size range 50 mm to 200 mm per part number
• Suited to water and light industrial media

Applications

• Water and treatment systems
• Industrial process lines and plant services
• Irrigation mains
• Throttling a pump discharge

Compatibility and fitting

• Stocked at 50, 65, 80, 100, 125, 150 and 200 mm
• The lugged T/E version adds threaded lugs and carries on to 300 mm
• Below 50 mm the range moves to threaded bodies in ball valves
• Cast iron body, so it belongs in a fixed installation rather than something that gets moved

Can a butterfly valve throttle flow?

Yes, within reason, and it is one of the reasons the pattern is used on larger lines. The disc sits in the flow at whatever angle you leave it, so the valve will hold a part open position in a way a gate valve is not meant to. The supplier lists this one for isolating or regulating flow.

Plain or lugged: which do I need?

Plain if the valve simply sits in a run that stays assembled. Lugged T/E if you want threaded lugs so it bolts to a flange on its own and one side of the pipework can come off for maintenance. The lugged range also covers 250 mm and 300 mm, which this one does not.

Both butterfly patterns are listed under valves.
