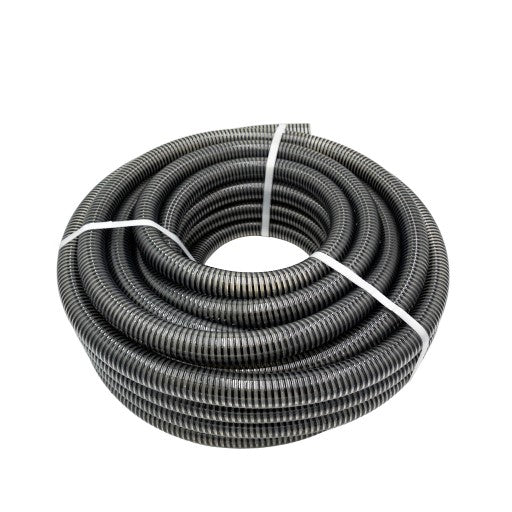

38mm PVC Food Suction Hose Black/Clear

The common cellar, brewery and dairy bore in a black helix build: 38 mm inside, 46.1 mm outside, clear walled so the line can be watched and smooth bored so it rinses clean between batches. Working pressure 0.6 MPa (87 psi) at 20°C. Stock code PSHBC38.

Key features

• 38 mm bore, 46.1 mm OD
• 0.6 MPa (87 psi) at 20°C
• Operating temperature -5°C to +60°C
• Clear PVC with a black helix, smooth inner and outer
• Good UV and abrasion resistance on the outer wall
• Conforms to AS/NZS 2070 for plastics in food contact

Applications

• Cellar and brewery transfer between vessels
• Dairy lines on small and medium plant
• Air seeder runs on farm machinery
• Mild chemical suction and delivery

Compatibility and fitting

• Drops straight onto a 38 mm pump port, which is where most beverage plant is sized
• Clamp to the 46.1 mm outside diameter, not to the bore — hose clamps
• Stainless tails for food rooms: stainless steel fittings
• Same bore in the red build: 38mm red and clear food suction hose

Will it take hot cleaning water?

Only up to +60°C. That covers warm caustic rinsing but not a hot CIP cycle. If the line is cleaned above that, use rubber food suction hose, which the supplier rates to +70°C.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
