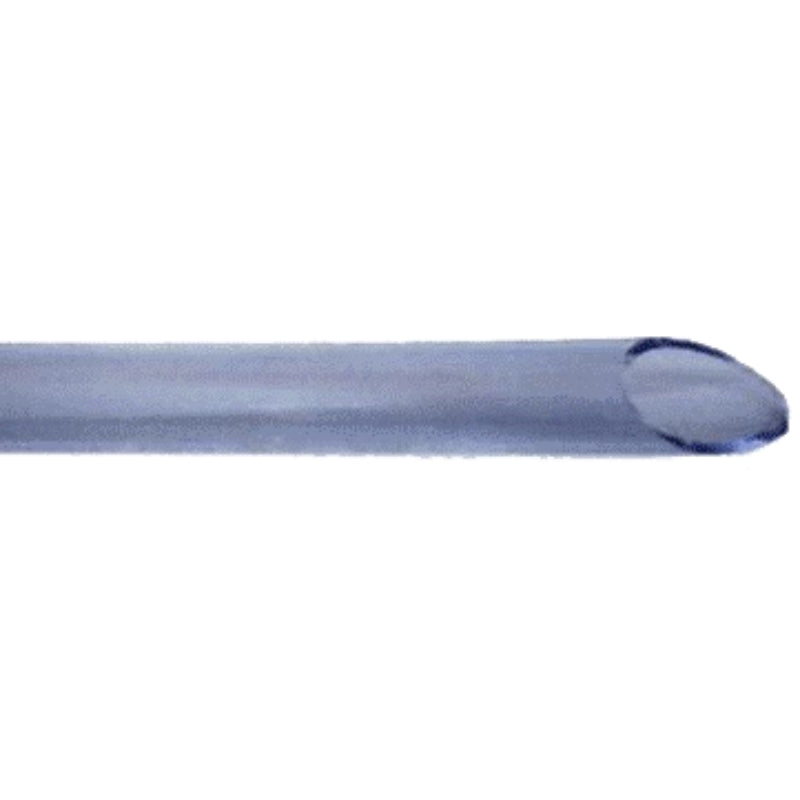

5mm Clear Vinyl Tube

5mm clear vinyl tube (part CVT05) is one of the two most requested bores, and the usual choice for small air and fluid lines on machines, benches and dispensing equipment where 3 mm is too fine to flow and 6 mm will not fit the barb. The tube is unreinforced virgin PVC with a light blue tint, so the line stays soft, bends easily and lets you see exactly what is moving through it.

Key features

• Nominal inside diameter 5mm, outside diameter 8mm
• Working pressure 0.7 MPa (101 psi) at 20°C
• Operating temperature -5°C to +60°C
• Clear with a blue tint, so flow and blockages are visible
• Virgin PVC conforming to AS/NZS 2070 for plastics in food contact, and EU RoHS compliant
• Good chemical resistance and a moderate level of UV protection
• Supplied cut to length or as a full coil (30 m and 150 m)

Applications

• Small bore air lines
• Dispensing and beverage lines
• Coffee machines and water filters
• Bench and workshop rigs
• Model and hobby applications

Compatibility and fitting

• Sizing is by inside diameter: 5mm tube fits a 5mm barb or spigot
• Secure with a hose clamp or crimp ferrule sized to the 8mm outside diameter
• Warming the end in hot water makes it far easier to push onto a tight barb
• For pressure work choose a reinforced hose from the PVC hose range rather than unreinforced tube

What fitting does 5 mm tube take?

It pushes over a 5 mm barb and is normally held with a small hose clip or a crimped ferrule. Warming the end in hot water makes it far easier to get over the barb without splitting it.

Other bores from 3 mm to 50 mm are in the clear vinyl tube range.
