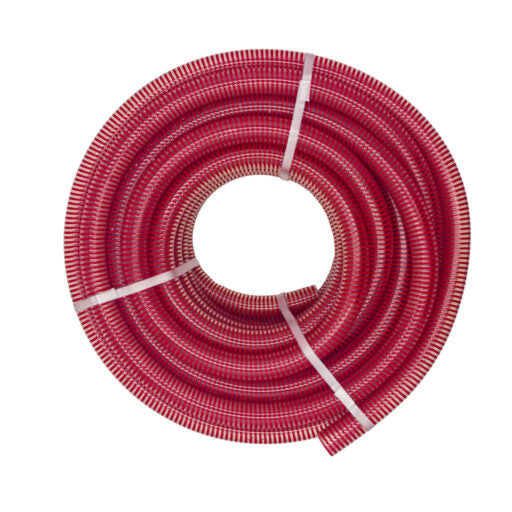

76mm PVC Food Suction Hose Red/Clear

The largest bore in the red and clear range: 76 mm inside, 89.6 mm outside, for tanker loading and unloading and for bulk transfer where anything smaller would take all day. The clear wall lets an operator see the product and the air, and the red helix carries the vacuum. Rated 0.5 MPa (73 psi) at 20°C. Stock code PSHRC076.

Key features

• 76 mm bore, 89.6 mm outside diameter
• 0.5 MPa (73 psi) at 20°C
• -5°C to +60°C operating range
• Heavy duty flexible smooth bore; phenol and phthalate free
• AS/NZS 2070, USA FDA CFR21 and EU 2002-72-EC
• Supplied cut from 2 m or as a 20 m coil

Applications

• Road tanker loading and unloading at wineries and dairies
• Bulk juice and wine intake at vintage
• Emptying large storage vessels quickly
• General food processing suction and discharge at high flow

Compatibility and fitting

• At 89.6 mm outside, order clamps and camlocks to the measured OD rather than the bore — camlock couplings
• Watch the pressure ceiling: 0.5 MPa is the lowest in the range, and a positive displacement pump can pass it
• Support the hose so its own weight does not pull the end fitting when charged
• Full food and beverage range: food and beverage hose

Is 76 mm the same as a 3 inch hose?

It is the metric size stocked for that duty, and it is the bore the fittings must match. Order the tails, camlocks and clamps to 76 mm and to the 89.6 mm outside diameter rather than to a nominal figure, or the ends will not pull up square.
