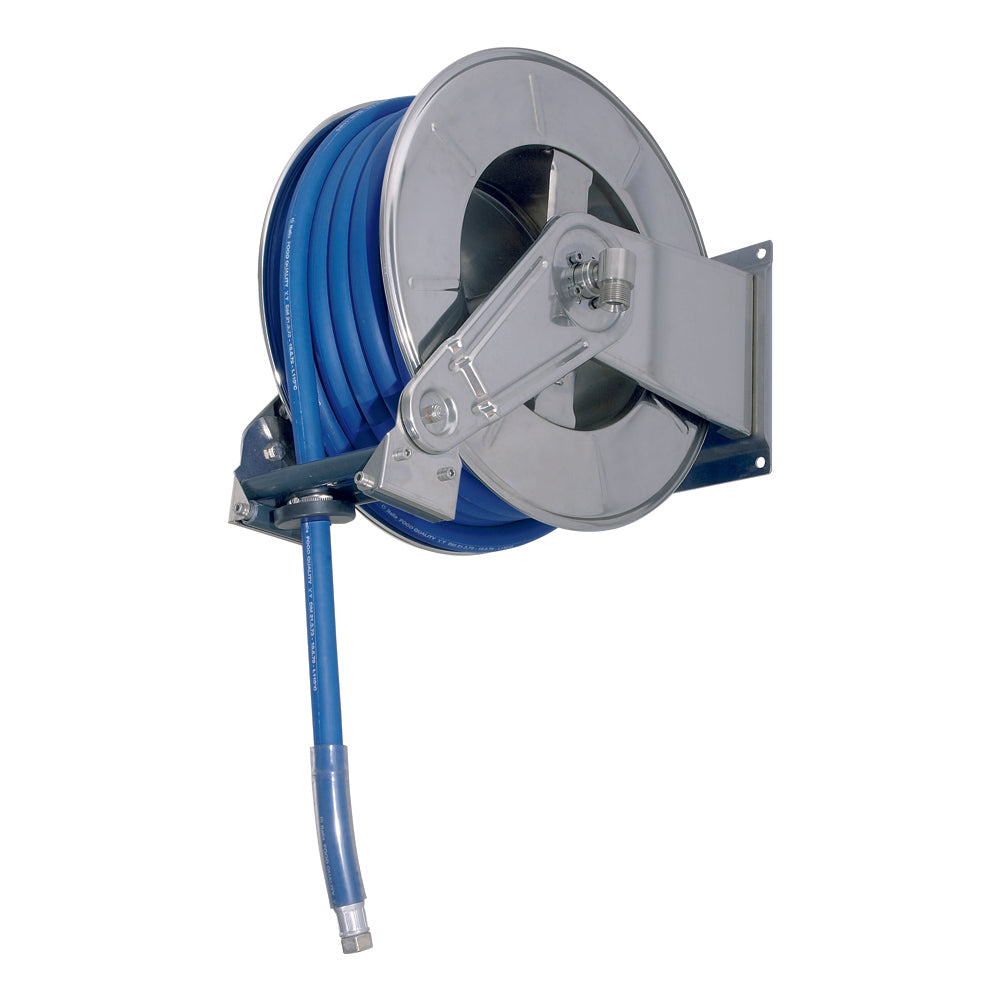

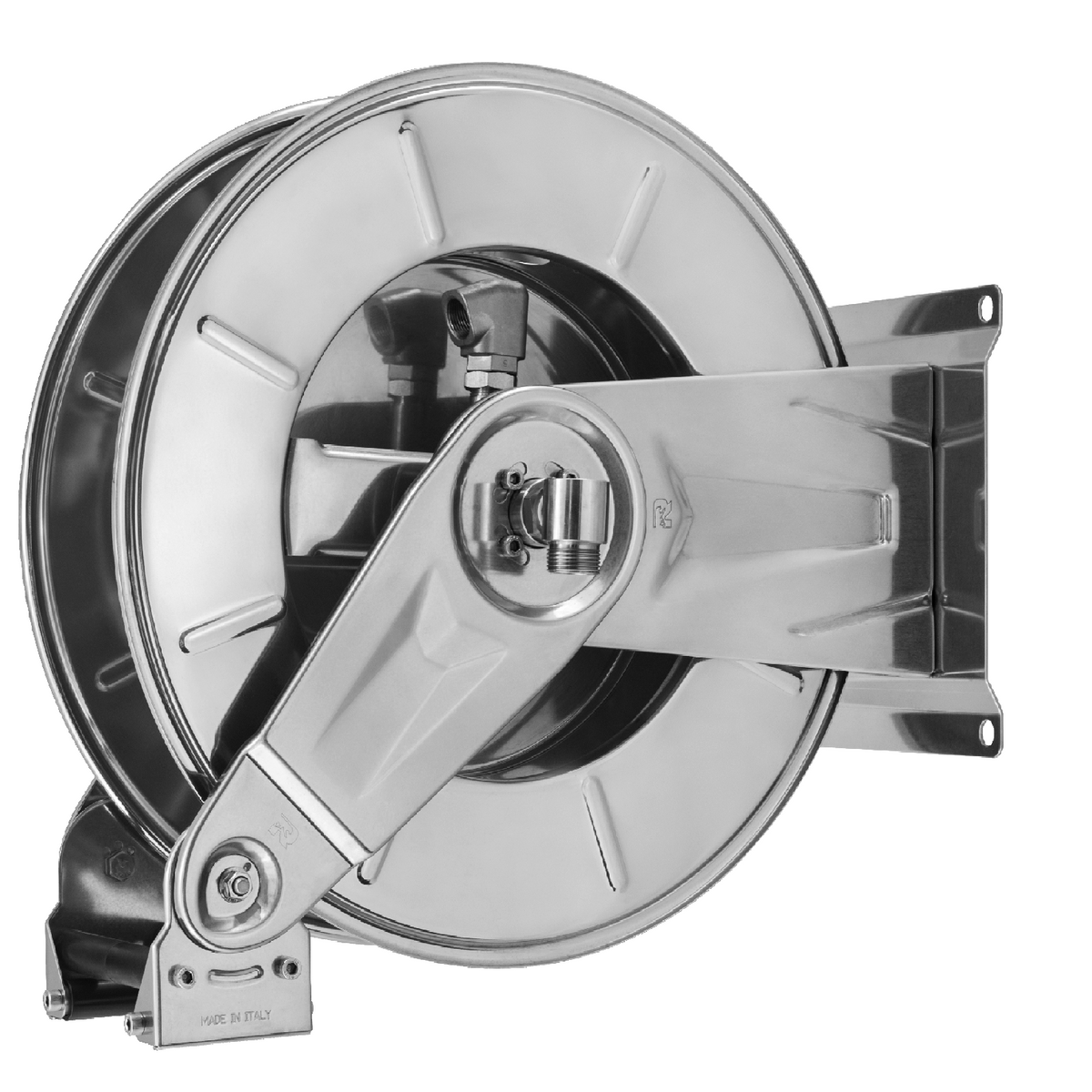

Retractable SS Hose Reel 25M x 3/4" Hose

Retractable stainless steel hose reel (part HR3502), built from AISI 304 stainless steel and sized for 25 m of 3/4" (20 mm) hose. A stainless reel holding 25 m of 3/4 inch hose, for wash down points that have to reach right across a production room or a wash bay. Supplied as a bare reel, so the hose is chosen to suit the duty and is not included.

Key features

• AISI 304 stainless steel construction for wet, humid and corrosive areas
• Takes 25 m of 3/4" (20 mm) hose
• Long reach on the large bore, so pressure holds up at full extension
• Suits rooms where a second reel would otherwise be needed
• AISI 304 construction for constant wet service
• Spring retracting drum: the hose winds back when released
• Bare reel, hose not included

Applications

• Large production and packing halls
• Abattoirs and boning rooms
• Truck and plant wash bays
• Brewery and beverage floors
• Workshops with a long single run

Compatibility and fitting

• The longer the hose, the more the bore matters; at 25 m a 3/4 inch line still delivers a usable jet
• Overhead mounting keeps 25 m of hose off the floor between jobs
• Hot service needs hot water wash down hose, not standard PVC
• Check the hose rating against your supply pressure and temperature; the hose sets the limit, not the reel

Does a long hose lose pressure?

It does, and small bores lose more than large ones. That is the argument for the 3/4 inch reel at this length: the larger bore offsets the friction so the gun still works properly at the far end.

Compare the full range in hose reels.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
