Nitto Air Coupling Female x MBSP

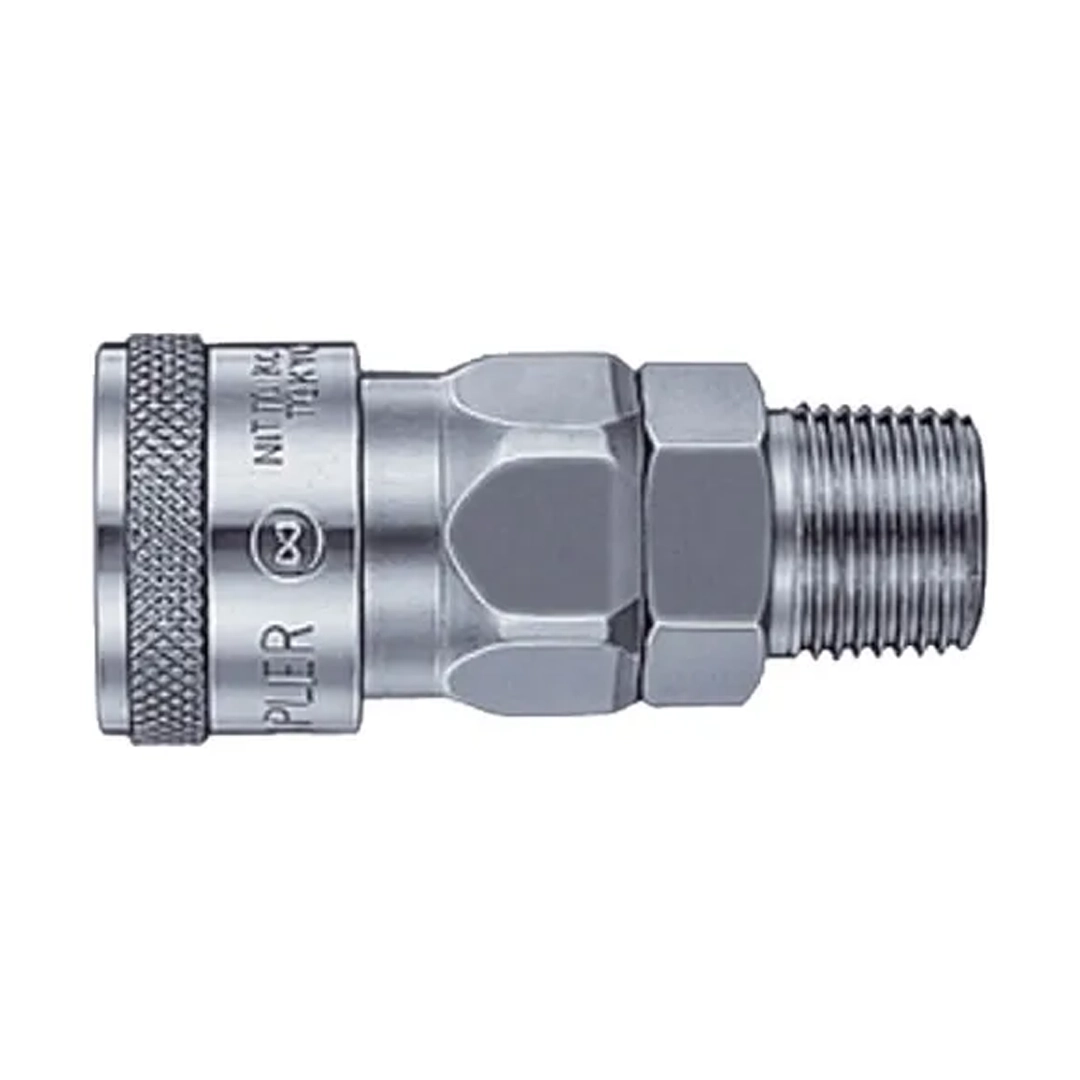

The female socket half of a Nitto style coupling with a male BSP thread behind it, so it screws into a female threaded outlet and turns it into a quick connect point. Sizes are 20SM at 1/4", 30SM at 3/8" and 40SM at 1/2". Sockets on the fixed side is the usual arrangement in a repair bay, because the socket shuts off when nothing is plugged in.

Key features

• Female Nitto style socket with a male BSP threaded end
• Stocked as 20SM (1/4"), 30SM (3/8") and 40SM (1/2")
• Sleeve release for one handed disconnection
• Threads into a female port on a regulator, manifold or wall outlet
• Used in industrial plants, repair bays and air powered equipment lines

Applications

• Wall and post mounted air outlets
• Filter, regulator and lubricator outlets
• Compressor tank take-off points
• Air manifolds serving several bays

Compatibility and fitting

• Screws into a female BSP port and seals on the thread, not on the coupling face
• Accepts the matching series male plug, whether it is a hose tail, male BSP or female BSP type
• Sizes step with the series: 20 is 1/4", 30 is 3/8", 40 is 1/2"
• Pair it with a plug from the Nitto coupling range and a reel from hose reels

Why put the socket on the fixed side?

Because the socket holds the air when nothing is connected. Mount sockets at the wall, the reel or the manifold and the hose you unplug is not left pressurised and thrashing about.

Female x MBSP sounds contradictory. Is it?

No. Female describes the coupling half and MBSP describes the thread, so this is a female socket with a male BSP thread on the back. Read the two halves of the name separately and the part is unambiguous.

Every end configuration is listed in Nitto quick connect couplings.
