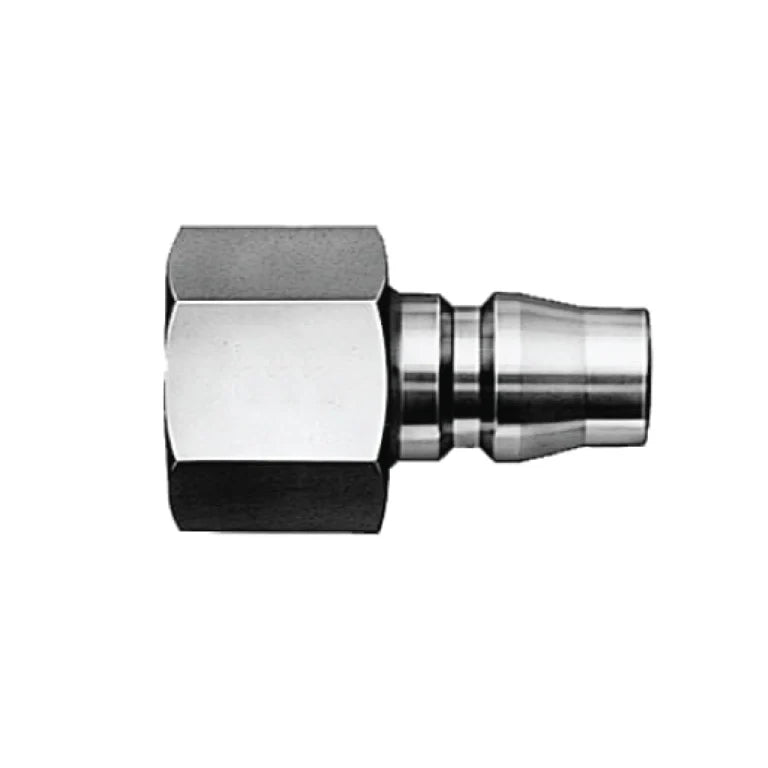

Nitto Air Coupling Male x FBSP

A Nitto style male plug with a female BSP thread, for screwing onto a male threaded outlet. It is the part to order when the equipment presents a male thread and an adaptor would otherwise be needed to reverse it. Stocked as 20PF at 1/4", 30PF at 3/8" and 40PF at 1/2", for industrial, workshop and automotive air lines.

Key features

• Quick connect male plug with a female BSP threaded end
• 20PF (1/4"), 30PF (3/8") and 40PF (1/2")
• Screws onto a male thread, so no reversing adaptor is needed
• Compatible with Nitto style sockets of the same series
• Used in air hose assemblies and on pneumatic tools

Applications

• Male threaded tool inlets and stub outlets
• Air hose assemblies ending in a male nipple
• Pneumatic equipment fitted with a male BSP spigot
• Compressor outlets that already carry a male thread

Compatibility and fitting

• Threads onto a male BSP outlet; seal the thread rather than over-tightening the coupling body
• Plugs into any matching series female socket in the Nitto range
• For a female port, order the male x MBSP version instead of adding a nipple
• Bushes and nipples to change thread size are in brass fittings

How do I tell a male x FBSP from a male x MBSP?

Look at the back of the plug, not the front. Both are male plugs on the coupling side; this one has an internal female BSP thread and the MBSP version has an external male thread. Order against what the equipment presents.

Is the plug pressurised when it is disconnected?

No, the socket is the half that holds the air. A disconnected plug on the end of a hose vents, which is why sockets go on the fixed side and plugs on the part being swapped.

Compare all six end types in Nitto quick connect couplings.
