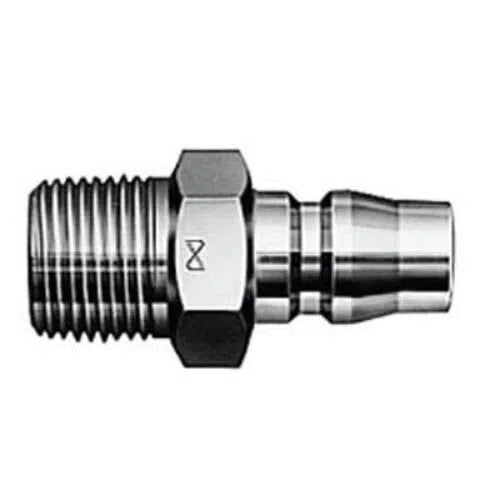

Nitto Air Coupling Male x MBSP

A Nitto style male plug with a male BSP thread on the back, for screwing directly into a female threaded port on a tool, valve or manifold. These are the PM codes, in the 20, 30 and 40 series, which are 1/4", 3/8" and 1/2" respectively. Because the plug is on the equipment, the tool can be lifted off the line and the hose socket left holding the air.

Key features

• Quick connect male plug with a male BSP threaded end
• Sizes 1/4", 3/8" and 1/2", the 20, 30 and 40 series
• Threads straight into a female port with no adaptor
• Turns any threaded inlet into a quick connect inlet
• Used across automotive workshops, manufacturing and general air lines

Applications

• Air tool inlets that arrive with a female thread
• Manifolds, filters and regulators
• Pneumatic valves and cylinders
• Blow guns and tyre inflators

Compatibility and fitting

• Screws into a female BSP port; seal the thread with tape or a sealant rated for air
• Connects to any matching-series female socket from the Nitto range
• Where a port is male instead, use the male x FBSP plug rather than stacking adaptors
• Adaptors and bushes to change thread size are in brass fittings

Male x MBSP: which male is which?

The first word describes the coupling half, so this is a male plug. The second describes the thread, so it is a male BSP thread. It goes into a female socket at one end and a female threaded port at the other, and getting these two the wrong way round is the usual ordering mistake.

Does the thread size have to match the coupling size?

On these it does: the 1/4" plug carries a 1/4" thread and the 1/2" plug a 1/2" thread. If the port is a different size, fit a brass bush rather than changing coupling series.

The rest of the range is in Nitto quick connect couplings.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
