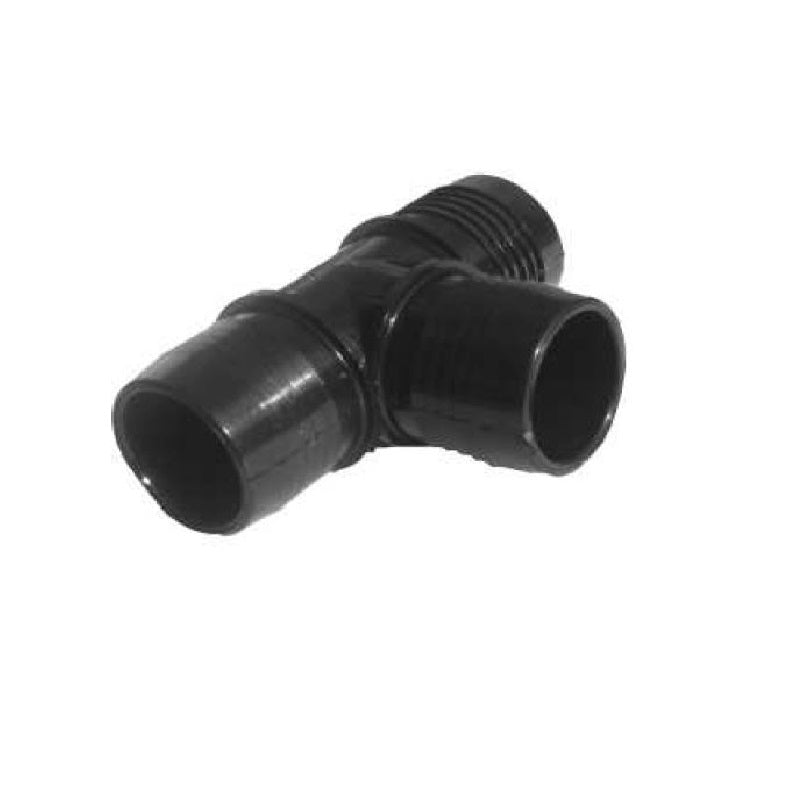

Nylon Hose Tee

A hose tee splits a run into two, or brings two lines into one, with a barb on all three legs. It goes into the middle of a hose run rather than onto a threaded port, which is exactly what an irrigation take off usually needs.

Key features

• Barbed on all three legs
• Splits or merges a run without a threaded connection
• Equal or reducing branch configurations
• Glass fibre reinforced nylon, also available in 100% polypropylene on request
• Certified to AS/NZS 4020, so it is approved for potable water
• Precision heavy duty tapered BSP threads
• 1600 kPa at 20°C for 6 mm to 50 mm, 1200 kPa at 65 mm, 1000 kPa from 80 mm to 100 mm
• Will not corrode, unlike brass or steel, in fertiliser, bore water and coastal air

Applications

• Irrigation take offs and branch lines
• Tank and trough distribution
• Nursery and glasshouse reticulation
• Garden watering systems
• Rural stock water branches

Compatibility and fitting

• Clamp all three legs; three barbs means three hose clamps
• For a threaded branch use the nylon BSP female tee instead
• Seal threads with a thread sealing paste or thread tape
• Nylon threads strip more easily than brass: tighten by hand and finish with a light nip, never a long lever
• Check the pressure band for the size you are buying, as it steps down above 50 mm

Does the branch have to match the run?

No. A reducing tee lets a smaller branch leave a larger run, which is what most irrigation take offs actually are.

How much pressure will it take?

Up to 1600 kPa at 20°C for sizes to 50 mm, the same as the rest of the range. In practice the clamps and the hose set the real limit.

The full range is in nylon fittings.
