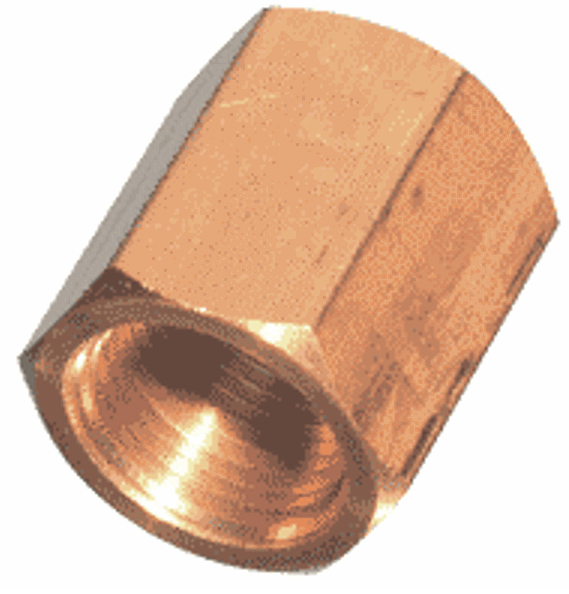

Screwed Brass Hex Socket

The No. 26 hex socket is a female thread at both ends with a hexagonal body, so it couples two male threads inline and can be brought up with a spanner rather than a strap wrench. That last point is why it is preferred over a plain socket on anything that has to come apart again.

Key features

• Female BSP thread at both ends, joining two male threads
• Hexagonal body takes a standard spanner
• Sizes 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch and 1 inch BSP
• Manufactured to AS 1722 and AS 3688
• Pressure rated to 3500 kPa (500 psi)
• Temperature range 0°C to +120°C
• BSP threads
• Cast or extruded brass for corrosion resistance

Applications

• Joining two male threaded components
• Fuel and oil line runs
• Natural gas and LPG installations
• Water and lubrication systems
• Pump and filter connections

Compatibility and fitting

• Both ends are the same size; use the reducing hex socket to change size
• Seal tapered threads with tape or a sealant rated for the fluid
• Brass into brass strips easily: tighten to seal, not to a hard stop
• Do not mix thread standards: a fitting cut to a different standard will start, feel tight and then weep

Hex socket or plain socket?

Same job, different body. The hex flats let you get a spanner on it, which matters on a fitting buried in a run or done up tight. On an accessible joint either works.

Which size do I need?

Read the male threads you are joining. Both ends of this fitting are the same, so if the two threads differ you want the reducing hex socket instead.

The full range is in brass fittings.
