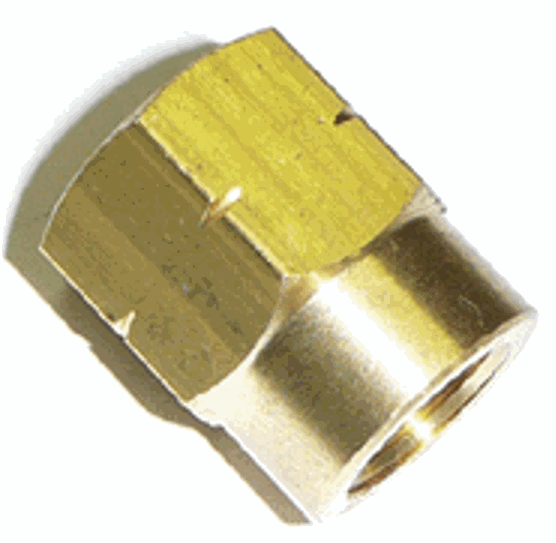

Screwed Brass Reducing Hex Socket

The No. 29 reducing hex socket joins two male threads of different sizes in one fitting. It saves stacking a nipple and a bush, which means one joint to seal instead of three, and the hex body means you can actually tighten it properly.

Key features

• Female BSP threads at both ends in two different sizes
• Hexagonal body for spanner tightening
• Combinations from 1/4 inch x 1/8 inch through to 3/4 inch x 1/2 inch
• Replaces a nipple and bush stack in a single fitting
• Manufactured to AS 1722 and AS 3688
• Pressure rated to 3500 kPa (500 psi)
• Temperature range 0°C to +120°C
• BSP threads
• Cast or extruded brass for corrosion resistance

Applications

• Connecting components with mismatched threads
• Fuel and oil transitions
• Natural gas and LPG work
• Water and lubrication lines
• Instrument and gauge connections

Compatibility and fitting

• Specify both sizes when ordering, larger end first
• Seal tapered threads with tape or a sealant rated for the fluid
• Brass into brass strips easily: tighten to seal, not to a hard stop
• Do not mix thread standards: a fitting cut to a different standard will start, feel tight and then weep

Why not a nipple and a bush?

It works, but it is two joints instead of one, so twice the thread sealing and twice the chance of a weep. A single reducing socket is always the better fitting.

Does the reduction restrict flow?

To the smaller thread, and that becomes the bottleneck for everything downstream. Reduce as late in the run as the layout allows.

The full range is in brass fittings.
