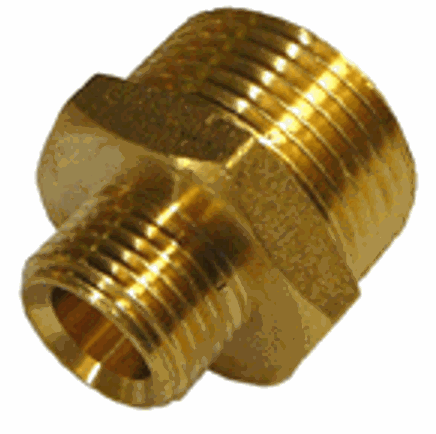

Screwed Brass Reducing Nipple

A reducing nipple is a nipple with a different thread size at each end. It joins two female ports that do not match, which happens constantly when equipment from different makers ends up in the same line.

Key features

• Male BSP thread at both ends in two different sizes
• Manufactured to AS 1722 and AS 3688
• Pressure rated to 3500 kPa (500 psi)
• Temperature range 0°C to +120°C
• BSP threads for local and international compatibility
• Cast or extruded brass for corrosion resistance

Applications

• Connecting components with mismatched threads
• Oil and fuel transitions
• Water and lubrication systems
• Natural gas installations
• Pump and filter connections

Compatibility and fitting

• Specify both sizes when ordering, large end first
• Where the port is female and the fitting male, you want a reducing bush instead
• Seal tapered threads with tape or a sealant rated for the fluid you are carrying
• Brass into brass strips easily: tighten to seal, not to a hard stop
• Do not mix thread standards: a fitting cut to a different standard will start, feel tight and then weep

Reducing nipple or bush?

Both change size. The nipple has male threads at both ends and joins two female ports. The bush is male outside and female inside, and screws into a port. Look at what you are joining.

Can I reduce two sizes in one step?

Usually yes, and it is better than stacking adapters. Every extra joint is another thread that can weep.

The full range is in brass fittings.
