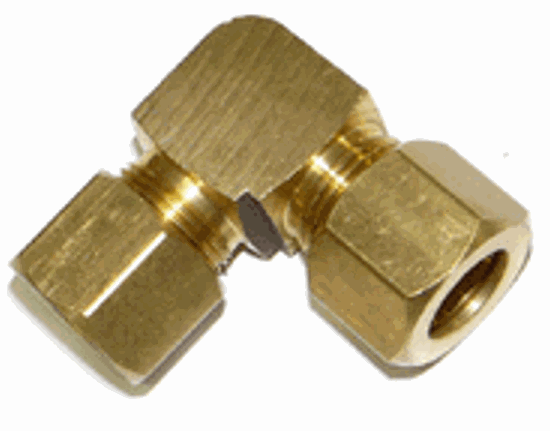

Standard Compression Elbow

A compression elbow turns a tube run through 90 degrees without bending it. On copper and Bundy that matters, because a tight bend either kinks the tube or needs a bender you may not have on site. The elbow makes the turn in the fitting instead.

Key features

• Suits 1/4 inch, 5/16 inch, 3/8 inch and 1/2 inch tube, supplied with a copper olive
• Suits tube from 1/8 inch to 1 inch outside diameter
• Turns a tube run 90 degrees in the fitting rather than in the tube
• Rated to 3500 kPa (500 psi)
• Suits copper, aluminium, Bundy and nylon tube
• Machined brass for long service and corrosion resistance
• Ideal in tight or complex layouts where the tube cannot be bent

Applications

• Compressed air lines around obstructions
• Fuel and oil piping in confined spaces
• Water transfer systems
• Gas supply installations
• Industrial machinery and control panels

Compatibility and fitting

• Both legs take a nut and olive sized to the tube
• Cut square and deburr before assembly
• Seat each tube fully into the elbow before tightening
• A spiggot is recommended on high pressure joints and in nylon tube

Elbow or bend the tube?

Bend the tube where you can do it cleanly, because every fitting is a potential leak. Use the elbow where the radius would kink the tube or where there is no room to swing a bender.

Does the elbow restrict flow?

Slightly, as any sharp change of direction does. On a compressed air line at these sizes it is not usually measurable; on a long low pressure run, prefer a swept bend.

The full range is in brass fittings.
