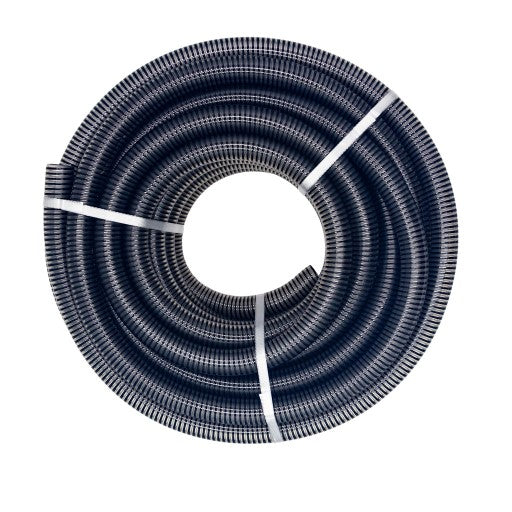

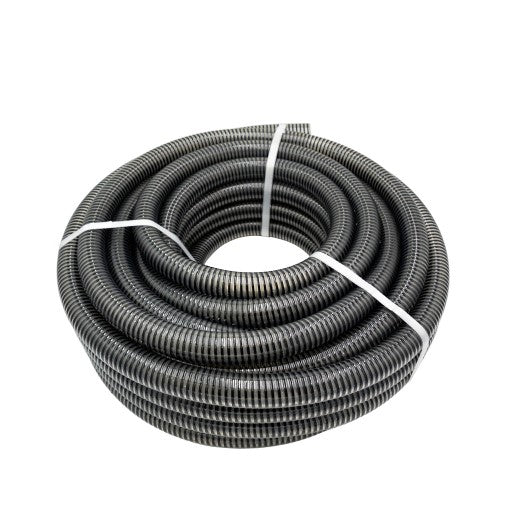

25mm PVC Food Suction Hose Black/Clear

Clear PVC with a black helix, so the media can be inspected without breaking the line. At 25 mm bore and 31.9 mm outside diameter this is the small-pump and drum-line size, rated 0.8 MPa (116 psi) at 20°C. The supplier also lists it for air seeder work and mild chemicals, and the outer wall has good UV and abrasion resistance. Stock code PSHBC25.

Key features

• 25 mm inside diameter, 31.9 mm outside diameter
• Working pressure 0.8 MPa (116 psi) at 20°C
• -5°C to +60°C

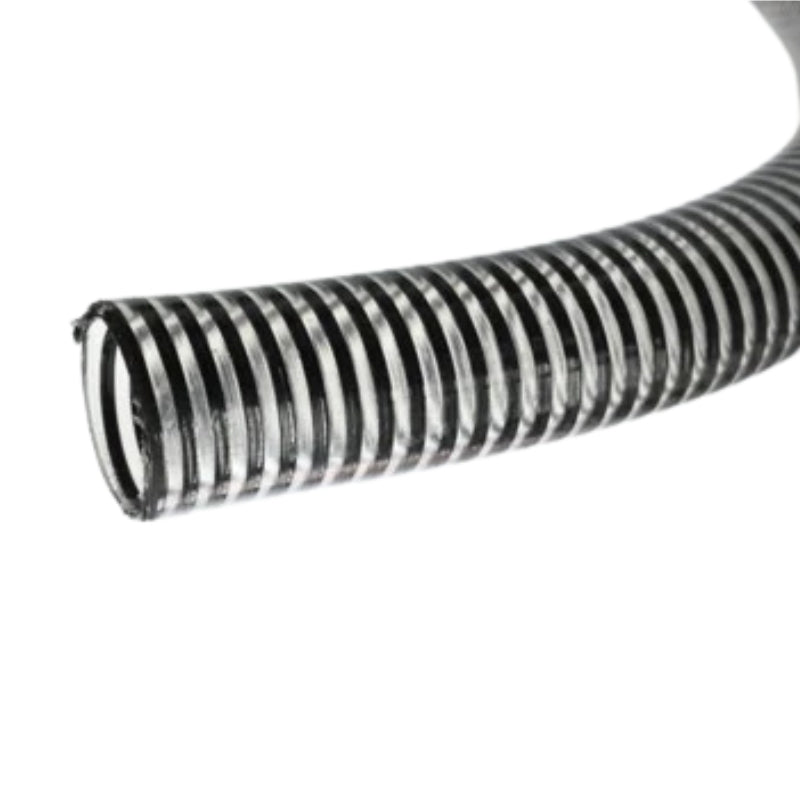

• Smooth inner and outer wall, clear PVC with a black helix
• Conforms to AS/NZS 2070, plastics for food contact
• 2 m, 5 m, 10 m and 15 m cut lengths or a 20 m coil

Applications

• Small transfer pumps, taps and drum decanting lines
• Air seeder lines on broadacre machinery
• Mild chemical transfer
• Potable water and food suction on small plant

Compatibility and fitting

• The black helix does the structural work: it keeps the bore round against vacuum, which is what separates this from a clear delivery hose
• Clamp over a 25 mm barb sized to a 31.9 mm outside diameter — hose clamps
• For wine and juice colour coding, see 25mm red and clear food suction hose
• Larger bores: black and clear PVC food suction hose

What counts as a mild chemical?

The supplier lists mild chemicals alongside food suction without naming products, so treat anything beyond water-based cleaning chemistry as a question rather than an assumption. Send us the chemical and the concentration and we will check it against the compound before you order.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
