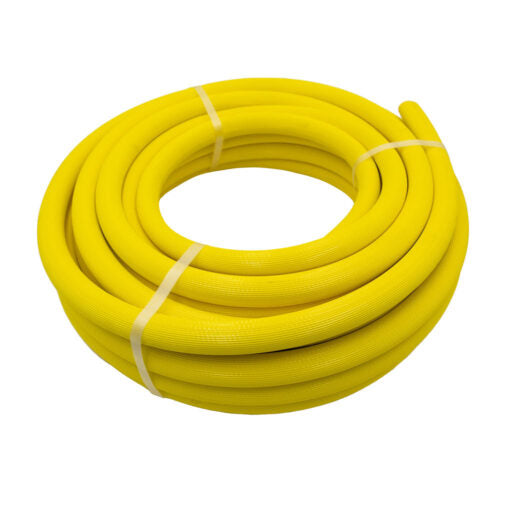

25mm Safety Yellow PVC Hose

The 25 mm bore, PHS25, is the general purpose site size: pump outlets, standpipes and heavy duty compressed air runs where a 20 mm line starts to choke. It measures 34.8 mm on the outside. The yellow ribbed cover is not decoration, it is what keeps the hose visible in a trench or across a slab, and it takes abrasion and sunlight better than a plain smooth cover. Rated 1.6 MPa (230 psi) at 20°C to AS/NZS 2554 with a 4:1 safety factor.

Key features

• 25 mm inside diameter, 34.8 mm outside diameter
• Black PVC smooth inner with a ribbed high visibility yellow cover
• Reinforced with high tenacity polyester yarn
• Working pressure 1.6 MPa (230 psi) at 20°C
• Manufactured to a 4:1 pressure safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS/NZS 2554
• Cut 2 m to 15 m, or coils of 20 m, 30 m, 50 m, 75 m and 100 m

Applications

• Site water off a pump or standpipe
• Heavy duty compressed air lines on construction and civil work
• Mining and quarry service water
• Wash down bays and plant cleaning
• Temporary water supply between tanks and sheds

Compatibility and fitting

• Fits a 25 mm tail or camlock; see camlock fittings
• On air, use ferrule-crimped ends rather than a worm drive where the line is dragged
• The full size range is on yellow PVC hose

Is it a suction hose?

No. It is yarn reinforced with no helix, so it will flatten if a pump pulls vacuum on it. Use it on the delivery side and fit a proper suction hose to the pump inlet.
