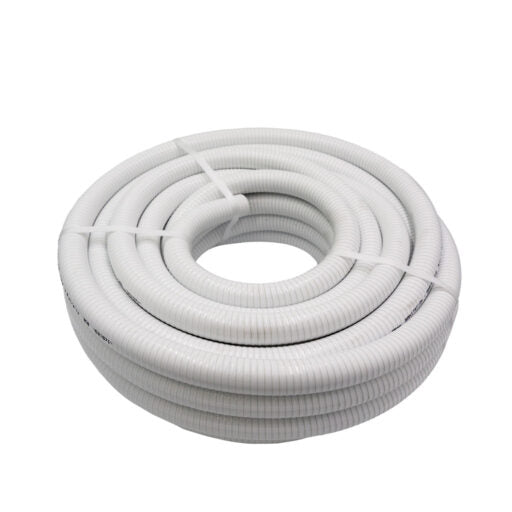

38mm White Marine Sanitation Hose

38 mm is the discharge size on most marine toilets and holding tanks, and part PSHSW38 is the hose that run is normally plumbed in. The supplier rates it for marine toilets, suction and low pressure delivery at up to 130 psi at 20°C, over a temperature range of -5 to +60°C. Like the smaller bores it is a white PVC blend with 20% nitrile content and a rigid PVC helix, the nitrile being what keeps odour inside the wall in a hot, closed compartment.

Key features

• 38 mm inside diameter, the standard marine toilet discharge bore
• Maximum working pressure 130 psi at 20°C
• Temperature range -5 to +60°C
• White PVC with 20% nitrile content and a rigid PVC helix
• Rated for suction as well as low pressure delivery
• Cut per metre from 2 m, or a 20 m coil for a refit

Applications

• Discharge from a marine toilet to a holding tank
• Holding tank to pump-out or to the through-hull outlet
• Suction legs where the pump pulls rather than pushes
• Boat builders and refit work plumbing a complete waste run

Compatibility and fitting

• Fits a 38 mm spigot; keep the same bore for the whole discharge leg
• Secure each end with stainless clamps from the hose clamp range
• A vented loop belongs in any run that sits near the waterline: see skin fittings and marine products
• Smaller vent and intake bores are in the white marine sanitation hose range
• Sullage and grey water lines use purple sullage hose

Is this hose rated for suction?

Yes. The supplier lists marine toilets, suction and low pressure delivery as the intended uses, so it can sit on the inlet side of a pump as well as the outlet side, within the 130 psi and 60°C limits.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
