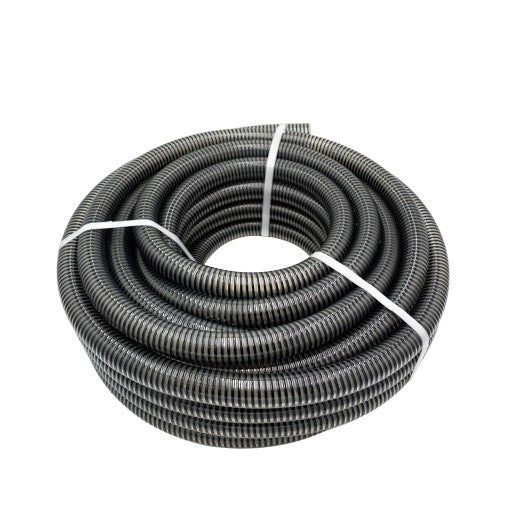

50mm PVC Food Suction Hose Black/Clear

Fifty millimetre bore on a 60.2 mm outside diameter, clear walled with a black helix for visual inspection of whatever is moving through it. The supplier rates it for food suction, air seeder work and mild chemicals, with good UV and abrasion resistance for hose that lives outdoors. Working pressure 0.5 MPa (73 psi) at 20°C. Stock code PSHBC50.

Key features

• 50 mm inside diameter, 60.2 mm outside diameter
• 0.5 MPa (73 psi) at 20°C, the lowest rating in the black and clear range
• -5°C to +60°C
• Smooth inner and outer wall, clear PVC with a black helix
• Conforms to AS/NZS 2070 for plastics in food contact
• Cut lengths from 2 m to 15 m, or a 20 m coil

Applications

• Larger transfer pump suction on food and beverage plant
• Air seeder and bulk handling lines on machinery
• Mild chemical transfer where the media needs watching
• Bulk water movement around a processing site

Compatibility and fitting

• Check the pump before you buy: at 0.5 MPa this hose is a transfer line, not a pressure line
• Fit 50 mm camlocks or a barbed tail clamped to 60.2 mm — camlock couplings
• Higher pressure at the same bore: 50mm red and clear food suction hose at 0.6 MPa
• See the whole range at black and clear PVC food suction hose

Suction or delivery: which do I need?

If the hose sits between the tank and the pump it is a suction hose and it must have a helix, or the vacuum will flatten it. If it sits after the pump it only sees positive pressure. This hose is built for both, which is why it can run the full circuit.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
