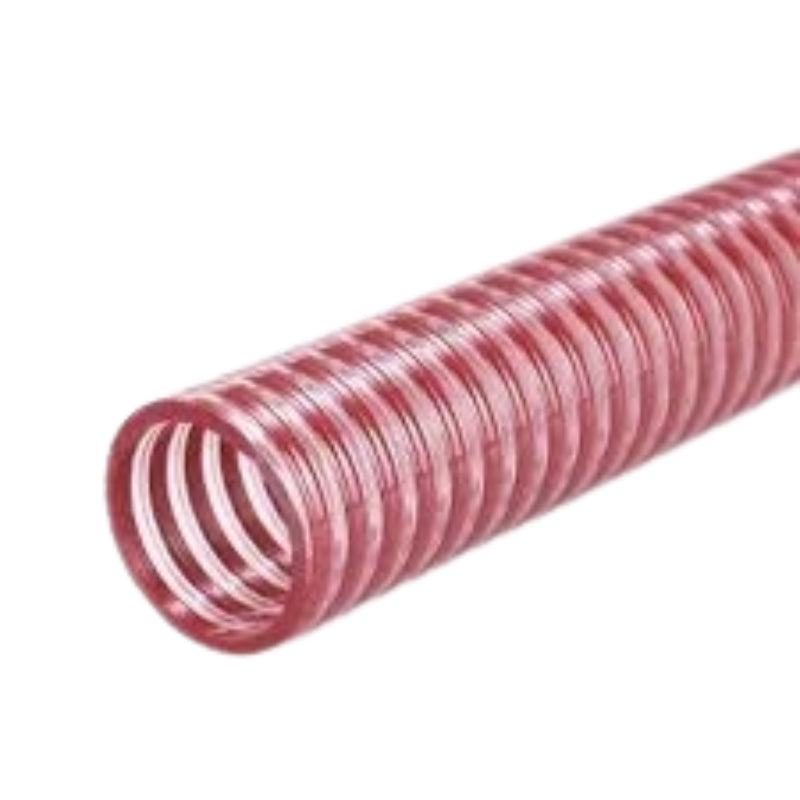

63mm PVC Food Suction Hose Red/Clear

Sixty-three millimetre bore for bulk suction and discharge: winery and brewery pump rooms that have outgrown 50 mm, and juice or dairy plant moving product between large vessels. Clear heavy duty PVC wall, red helix, working pressure 0.6 MPa (87 psi) at 20°C. Stock code PSHRC063.

Key features

• 63 mm inside diameter
• 0.6 MPa (87 psi) at 20°C, the same rating as the 50 mm size
• -5°C to +60°C
• Phenol and phthalate free compound; suitable for honey and dairy products
• Conforms to AS/NZS 2070, USA FDA CFR21 and EU 2002-72-EC

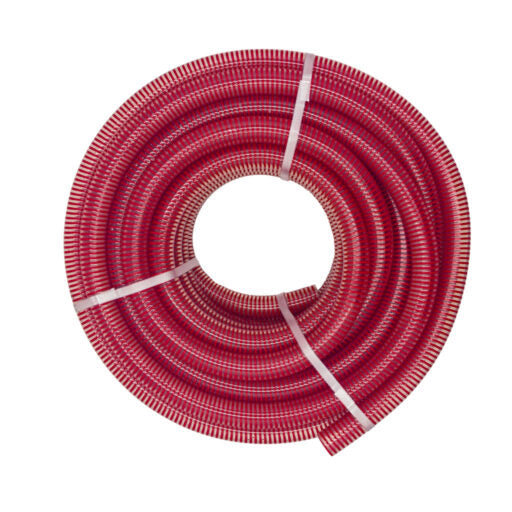

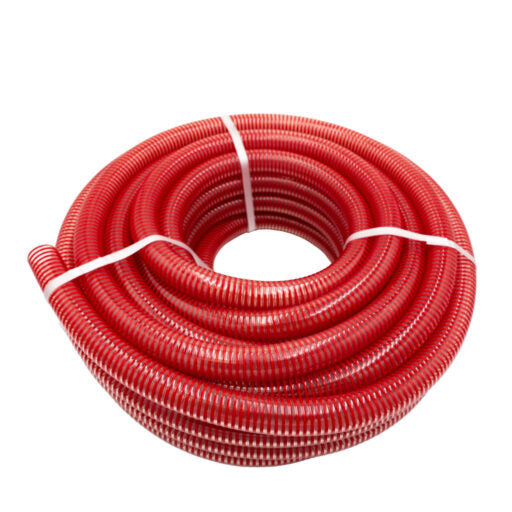

• Cut from 2 m, up to a 20 m coil

Applications

• Bulk transfer between fermenters, blending tanks and storage
• Press and drainer feed lines during vintage
• Large juice, syrup and dairy transfers
• Tanker loading on food processing sites

Compatibility and fitting

• The supplier does not publish an outside diameter for this size, so measure the hose before ordering clamp bands
• 63 mm camlocks or a heavy tail and two clamps are both workable ends — camlock couplings, hose clamps
• Colour options and the rest of the run: red and clear PVC food suction hose
• Heavier duty in the same bore: 63mm rubber food suction hose

Why does a hose this size need a helix at all?

Vacuum acts on the whole wall area, and at 63 mm that area is large enough to fold an unreinforced hose shut in seconds. The moulded-in helix is what makes this a suction hose; a delivery hose of the same bore would collapse on the pump inlet.
