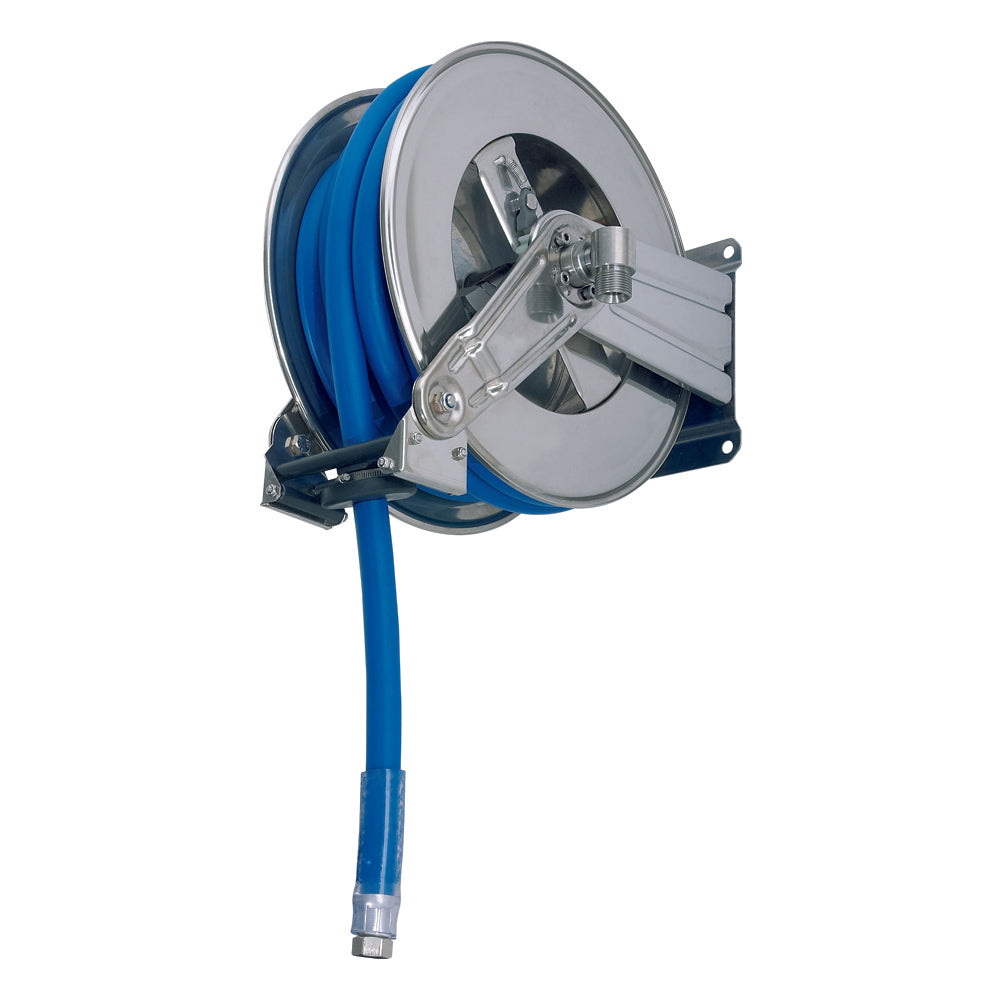

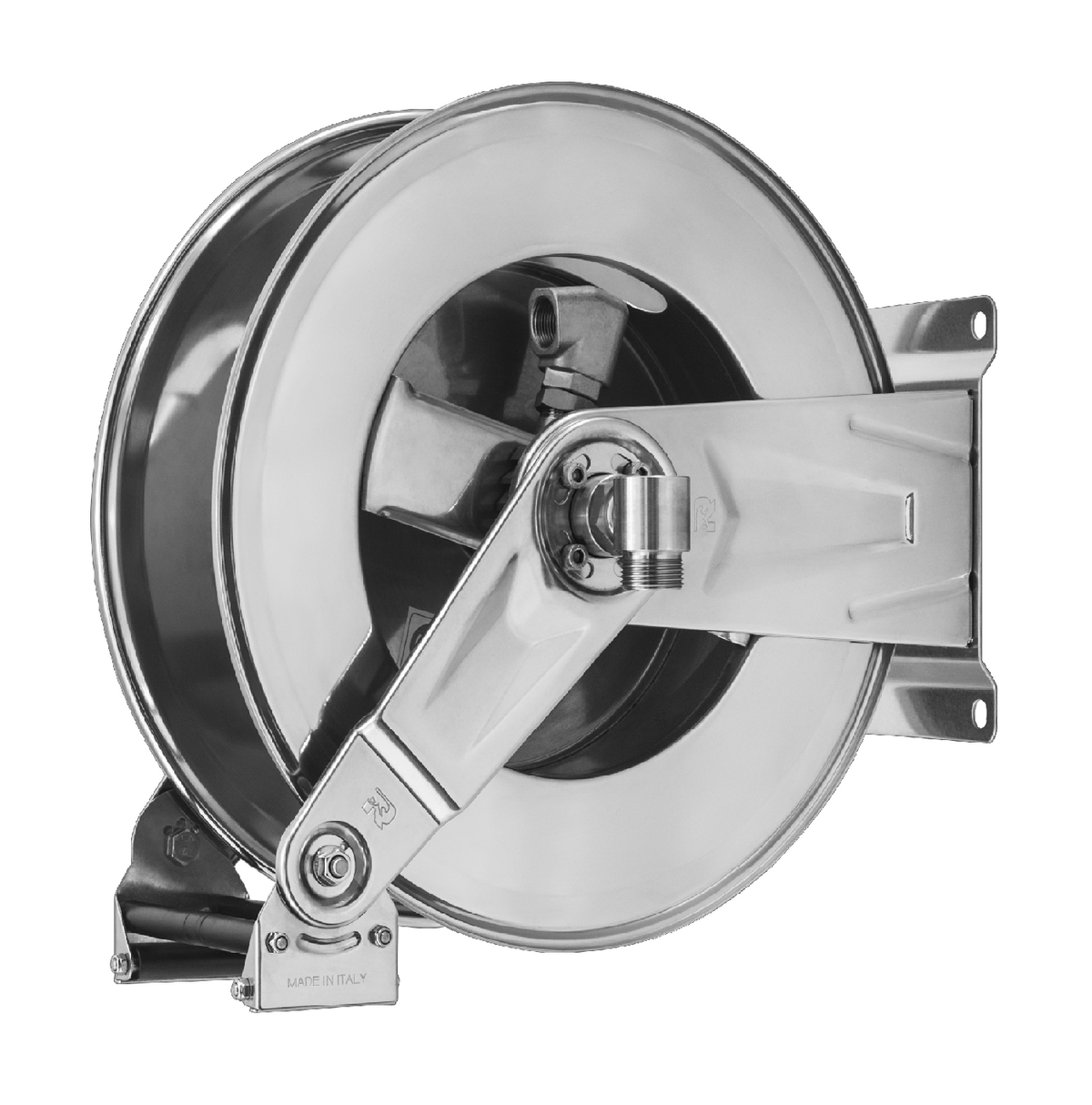

Retractable SS Hose Reel 13M x 3/4" Hose

Retractable stainless steel hose reel (part HR1200), built from AISI 304 stainless steel and sized for 13 m of 3/4" (20 mm) hose. The shortest reel in the stainless range, sized for 13 m of 3/4 inch hose. It suits a fixed point where the work sits close to the wall and a longer hose would only be dragged around: a single bay, a bench area, a cool room door or a jetty berth. Supplied as a bare reel, so the hose is chosen to suit the duty and is not included.

Key features

• AISI 304 stainless steel construction for wet, humid and corrosive areas
• Takes 13 m of 3/4" (20 mm) hose
• Compact drum, easiest reel in the range to fit where space is tight
• Short pull out length means less hose to handle every time
• Full 3/4 inch bore despite the short length, so flow is not compromised
• Spring retracting drum: the hose winds back when released
• Bare reel, hose not included

Applications

• Cool room and chiller doorways
• Single bench or prep station
• Jetty berths and pontoons
• Small wash bays
• Plant rooms and pump sheds

Compatibility and fitting

• Mount it central to the area it serves; 13 m goes further from the middle than from a corner
• Wash down hose is cut to length by the metre
• Finish with a trigger gun from the wash down gun range
• Check the hose rating against your supply pressure and temperature; the hose sets the limit, not the reel

Will 13 m actually reach?

Measure from the mounting point to the furthest corner in a straight line, not around the walls. Mounted centrally, 13 m covers a surprisingly large floor. If the measurement is close, take the 18 m reel.

Compare the full range in hose reels.
