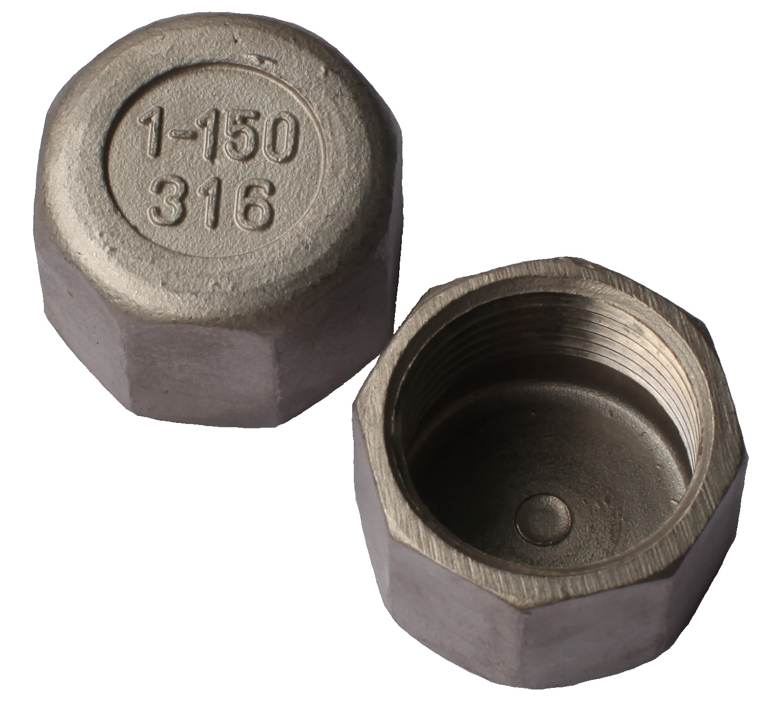

Stainless Steel Cap

A cap closes off a male thread. It is female inside and blank at the top, so it goes over a nipple, a valve stub or an unused male port and shuts it. Ten sizes in 316 stainless, 1/4" through to 3", each carrying a maximum working pressure of 150 psi.

Key features

• Closed female BSP thread, blank end
• 316 stainless steel
• 150 psi maximum working pressure
• Ten sizes: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2" and 3"
• Supplier-rated for water, fuel and oil

Applications

• Capping a spare outlet on a manifold or a tank
• Sealing a line for a pressure test before commissioning
• Keeping salt and grit out of an unused deck fitting
• Shutting down a branch that is out of service

Compatibility and fitting

• Fits over any male BSP thread of the matching size
• To blank a female port instead, use a hex plug
• Cap a spare leg of a female tee until the branch is needed
• Rest of the range: stainless steel fittings

Cap or plug?

A cap is female and goes on the outside of a male thread. A plug is male and goes into a female port. Look at the port you are closing, not at the fitting: a male stub takes a cap, a threaded hole takes a plug.
