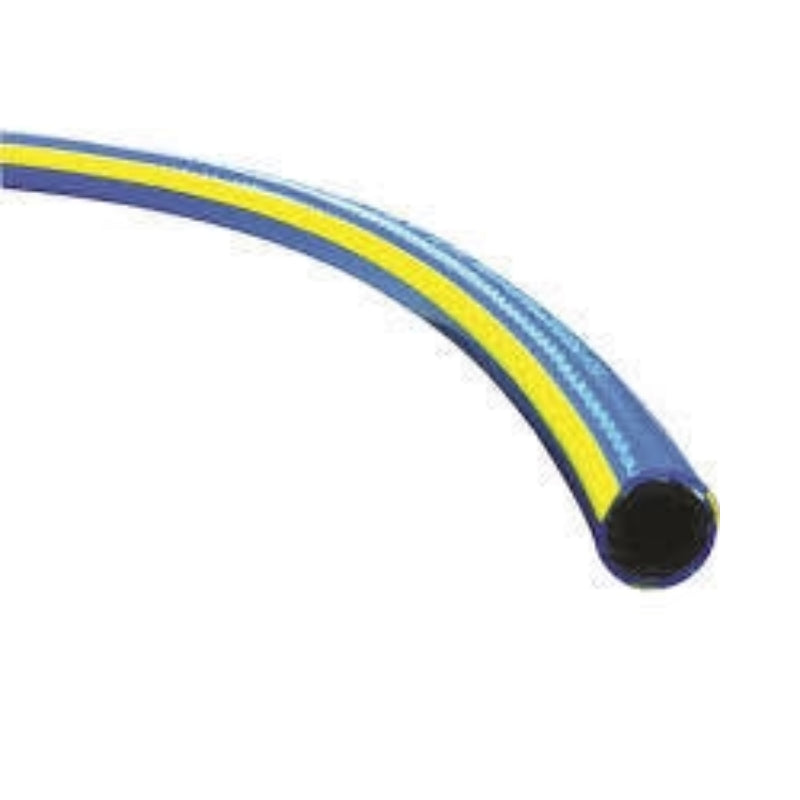

10mm Blue/Yellow PVC Air Hose

10 mm blue and yellow PVC air hose (part PHM10) is the most ordered air hose size and the default workshop drop, carrying enough for impact wrenches and grinders while staying easy to handle. It is built from a black PVC smooth inner with high tenacity polyester yarn reinforcement and a blue PVC cover with a yellow stripe, and it stays flexible in the cold where cheap air hose goes stiff.

Key features

• Nominal inside diameter 10 mm, outside diameter 16.4 mm
• Working pressure 1.6 MPa (230 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS 2554 Class B
• High tenacity polyester yarn reinforcement
• Abrasion resistant cover with a smooth finish
• Flexible at low temperatures
• Cut to length or supplied in coils (20 m, 30 m, 100 m and 300 m)

Applications

• Compressor drops and air lines
• Impact wrenches and grinders
• General workshop pneumatics
• Tyre bays and service work
• Air operated equipment

Compatibility and fitting

• Fits a 10 mm hose tail; secure with a hose clamp, two per end on a pressurised line
• Quick connect couplings to suit are in the Nitto coupling range
• Also available made up with fittings, ready to plug in
• For oil resistant service, rubber multi purpose hose is the better choice

How much does hose length cost me?

Every metre drops a little pressure, and small bores drop far more than large ones. If a tool is weak at the end of a long 6 mm line, the answer is a bigger bore rather than more compressor pressure.

Bores from 6 mm to 25 mm are in the blue and yellow air hose range.
