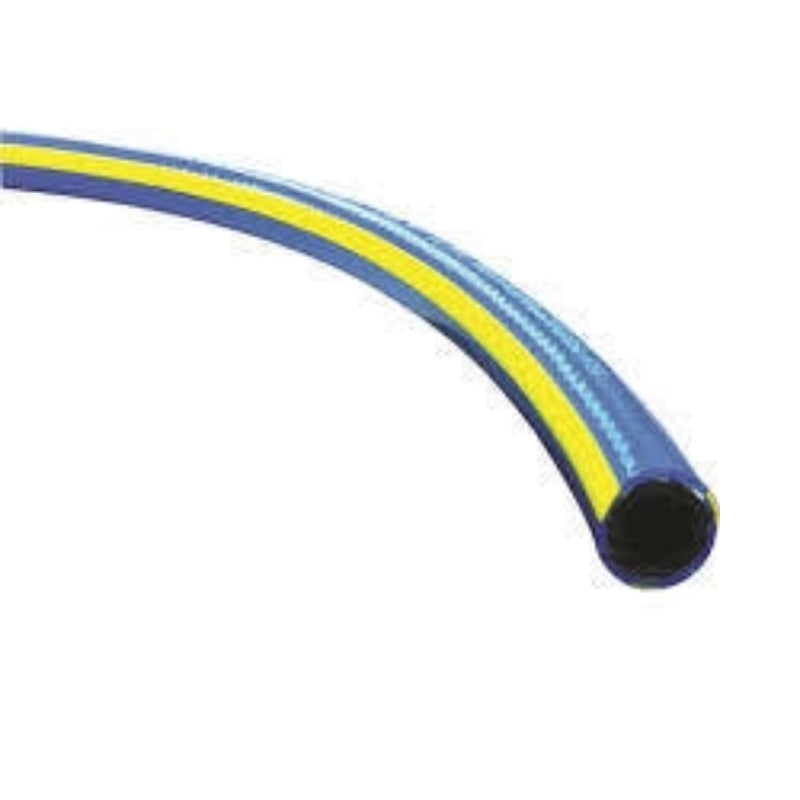

20mm Blue/Yellow PVC Air Hose

20 mm blue and yellow PVC air hose (part PHM20) is a large bore air line for bulk air and plant supply, where a smaller hose would throttle the flow before it reached the work. It is built from a black PVC smooth inner with high tenacity polyester yarn reinforcement and a blue PVC cover with a yellow stripe, and it stays flexible in the cold where cheap air hose goes stiff.

Key features

• Nominal inside diameter 20 mm, outside diameter 27.9 mm
• Working pressure 1.6 MPa (230 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS 2554 Class B
• High tenacity polyester yarn reinforcement
• Abrasion resistant cover with a smooth finish
• Flexible at low temperatures
• Cut to length or supplied in coils (20 m and 100 m)

Applications

• Bulk air supply on site
• Plant and machinery air feed
• Compressor to receiver runs
• Air operated pumps
• Sandblasting and high volume tools

Compatibility and fitting

• Fits a 20 mm hose tail; secure with a hose clamp, two per end on a pressurised line
• Quick connect couplings to suit are in the Nitto coupling range
• Also available made up with fittings, ready to plug in
• For oil resistant service, rubber multi purpose hose is the better choice

Is a big air hose dangerous?

Any air hose is, if it fails under pressure. At this bore there is more stored energy, so use rated fittings, keep two clamps on every tail, and whip-check any coupling on a line that runs across a work area.

Bores from 6 mm to 25 mm are in the blue and yellow air hose range.
