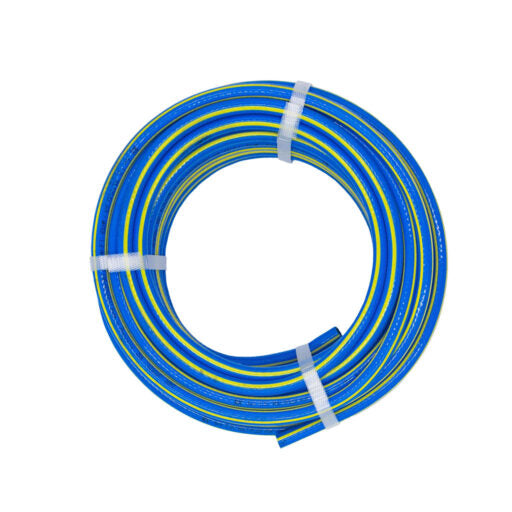

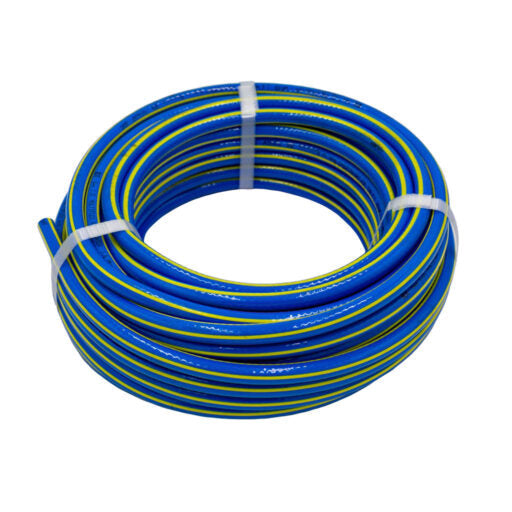

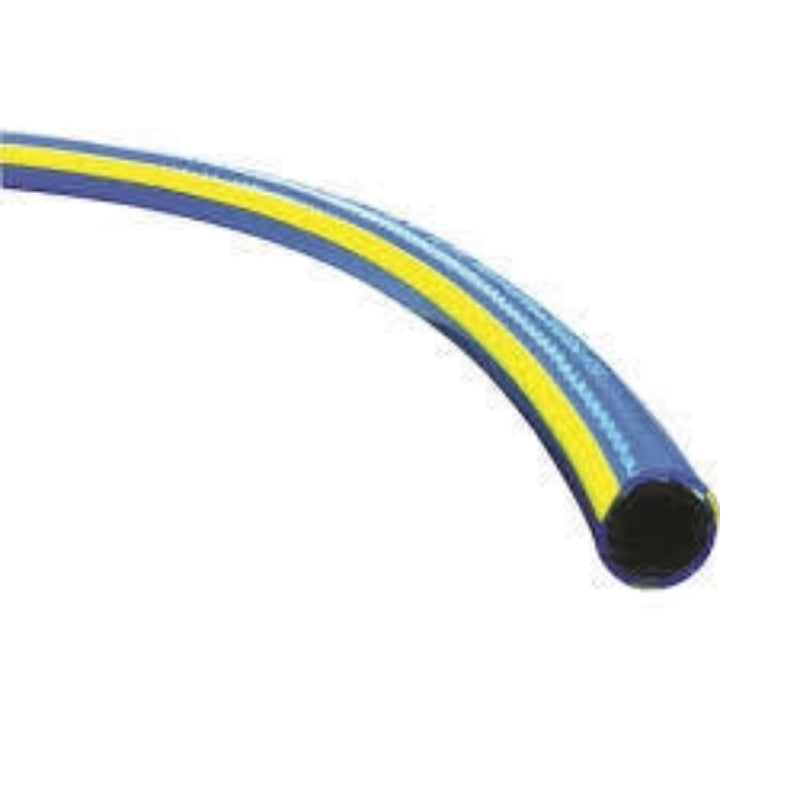

25mm Blue/Yellow PVC Air Hose

25 mm blue and yellow PVC air hose (part PHM25) is the largest air hose bore stocked, for site air and plant supply where volume is everything and the hose is run out and left in place. It is built from a black PVC smooth inner with high tenacity polyester yarn reinforcement and a blue PVC cover with a yellow stripe, and it stays flexible in the cold where cheap air hose goes stiff.

Key features

• Nominal inside diameter 25 mm, outside diameter 34 mm
• Working pressure 1.6 MPa (230 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS 2554 Class B
• High tenacity polyester yarn reinforcement
• Abrasion resistant cover with a smooth finish
• Flexible at low temperatures
• Cut to length or supplied in coils (20 m and 100 m)

Applications

• Site compressor supply
• Large plant and equipment air
• Air operated pumps and hoists
• High volume blasting
• Mining and quarry air lines

Compatibility and fitting

• Fits a 25 mm hose tail; secure with a hose clamp, two per end on a pressurised line
• Quick connect couplings to suit are in the Nitto coupling range
• Also available made up with fittings, ready to plug in
• For oil resistant service, rubber multi purpose hose is the better choice

Should I run one big hose or two smaller ones?

One correctly sized hose beats two undersized ones every time, because pressure loss compounds with every metre of restriction. Size the line for the total draw, not for what is on the shelf.

Bores from 6 mm to 25 mm are in the blue and yellow air hose range.
