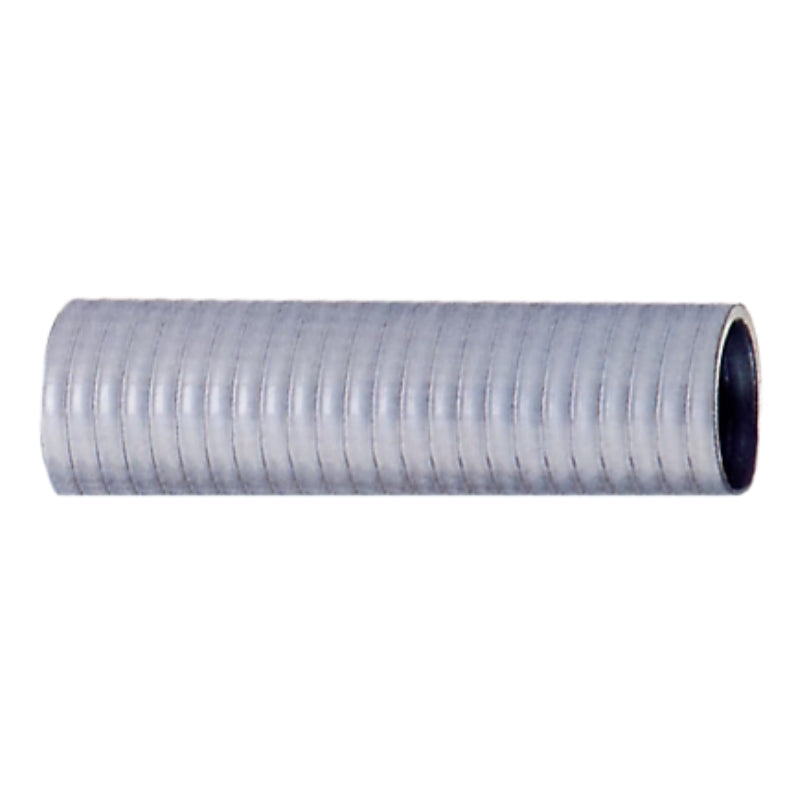

25mm PVC Water Suction Hose Grey

This is the hose that goes between the water and the pump on a small transfer or fire-fighting set. A rigid PVC helix is moulded into the 25 mm (1") wall, so the bore stays round when the pump pulls a vacuum instead of folding flat the way a layflat or garden hose does. Outside diameter is 31.9 mm and the wall is rated 0.9 MPa (130 psi) at 20°C, the highest in the grey range. SKU PSHG025, supplied in 20 m coils.

Key features

• 25 mm bore, 31.9 mm outside diameter
• Rigid PVC helix holds the bore open under vacuum
• Working pressure 0.9 MPa (130 psi) at 20°C, so it also runs as a discharge hose
• Conforms to AS/NZS 2070 for plastics in food contact
• Operating temperature -5°C to +60°C

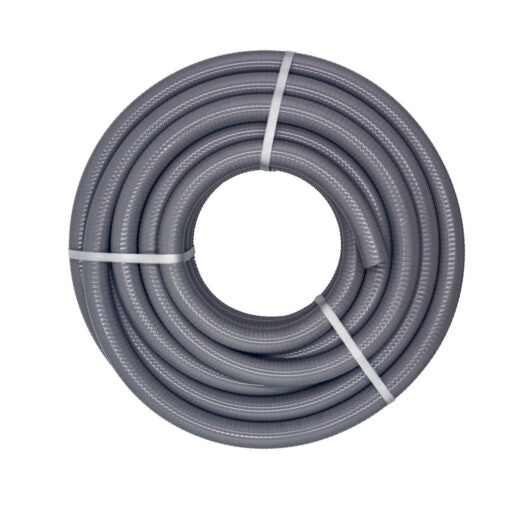

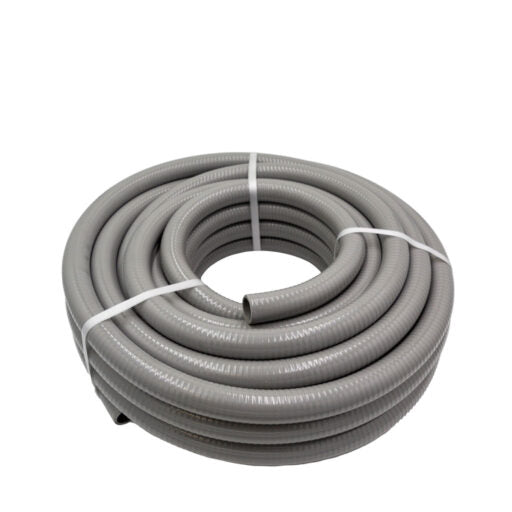

• Heavy duty flexible grey PVC, sold as a 20 m coil

Applications

• Suction line on small petrol transfer pumps
• Pool, tank and sump draining
• Small fire-fighting pump inlets
• Drawing water, mud and light slurry from a drum or pit
• Grain and light granular material transfer

Compatibility and fitting

• Fitted with 25 mm hose tails or camlocks over the helix, clamped hard; see camlock fittings
• Use a clamp sized to the 31.9 mm outside diameter from the hose clamps range
• On the discharge side of the same pump run blue layflat hose
• Larger bores are on grey PVC water suction hose

What makes this different from an ordinary PVC hose?

The helix. A plain hose has nothing to resist vacuum and shuts flat on a pump inlet. The rigid PVC spiral in this wall keeps the bore round so the pump draws full flow.

Can it be used on the discharge side as well?

Yes. It is rated 0.9 MPa (130 psi) at 20°C, so it works either side of the pump. The reverse is not true: a delivery hose cannot be used for suction.
