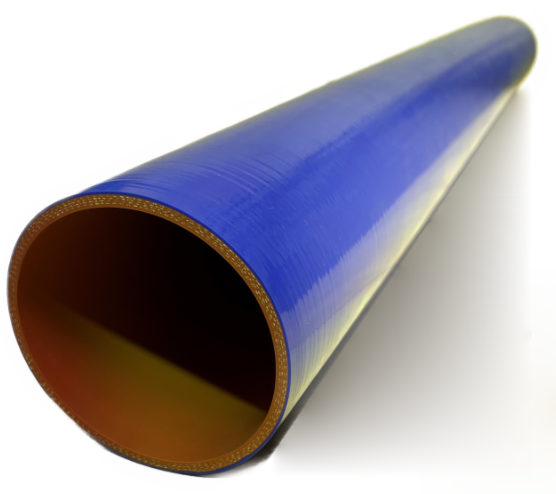

32mm (1 1/4") Blue Silicone Radiator/Intercooler Hose

32 mm (1 1/4") blue silicone hose sits in the small coolant band, joining bypass runs, throttle body coolant lines and compact intake piping on cars, light trucks and machinery. Read the limit first: this is a coolant and charge air hose and the supplier does not rate it for fuel or oil transfer. The wall is high performance silicone over four plies of polyester fabric, so it holds its round section on a tight bend rather than kinking flat.

Key features

• Nominal bore 32 mm (1 1/4")
• SAE J20R1, Class A, met or exceeded
• 4-ply polyester fabric reinforcement
• Rated from -55°C up to 180°C
• Resists ozone, oil splash and corrosion
• Part SILRH-125, or SILRH-125X36 for the 1 m length

Applications

• Radiator bypass and small top hose joins
• Throttle body and inlet coolant lines
• Compact intercooler piping on factory turbo cars
• Coolant plumbing on generators and pumps
• Auxiliary coolant runs on buses and light trucks

Compatibility and fitting

• Silicone is a softer wall than rubber, so reach for a smooth band or T-bolt clamp from the hose clamp range; a perforated band cuts into it as it comes up to tension
• Sized on bore: 32 mm fits a 32 mm pipe end or outlet
• Sits with the rest of the automotive hose range
• Fuel and oil lines need automotive fuel hose

Will 32 mm silicone fit a 1 1/4 inch pipe?

Yes. The supplier lists this hose at 32 mm (1 1/4"), and the figure is the inside diameter, so the hose pushes over a 1 1/4" spigot and the clamp pulls it down onto the bead.

Can it be cut down?

Yes. Cut square with a sharp blade so the end seats fully on the spigot and the clamp sits behind the bead rather than on the cut edge.

The full size list, 25 mm to 125 mm, is in the blue silicone radiator and intercooler hose collection.
