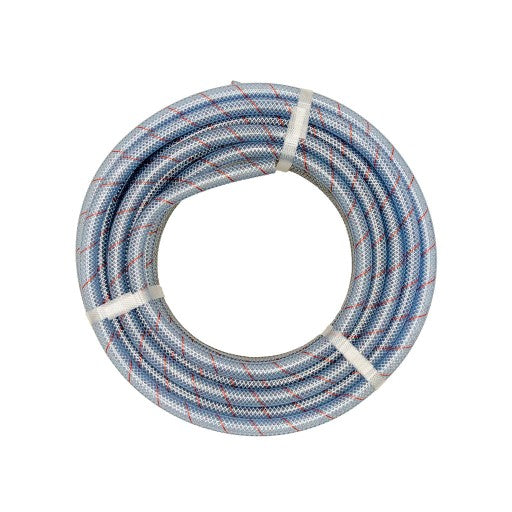

50mm (2") Clear Multi Purpose Hose

50 mm (2") clear braided PVC hose (part PHCMP050) is the largest clear braided bore stocked, for bulk transfer under moderate pressure where volume is the point and the line still needs to be visible. The clear PVC wall carries a blue tint and a red tracer, with high tenacity polyester yarn braid taking the pressure and a UV stabilised outer layer taking the sun.

Key features

• Nominal inside diameter 50 mm (2")
• Working pressure 0.9 MPa (130 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Red tracer high tenacity polyester yarn braid
• Meets AS/NZS 2554, and AS/NZS 2070 for plastics in food contact
• Clear wall with a blue tint, so flow and blockages are visible
• UV stabilised outer with a smooth finish
• Cut to length or supplied in coils (20 m and 40 m)
• Not suitable as a permanent fuel line

Applications

• Bulk transfer and decanting
• Large pump discharge
• Brewery and winery bulk movement
• Process water and mild chemicals
• Tank filling and emptying

Compatibility and fitting

• Fits a 50 mm hose tail; secure with a hose clamp, two per end under pressure
• Brass and stainless tails to suit are in the brass fittings range
• For permanent petrol or oil lines use petrol and oil delivery hose
• For suction duty use a helix reinforced hose; braid holds pressure, not vacuum

Is 130 psi enough for a big pump?

For most transfer pumps at this bore, comfortably. Check the pump's shut-off head rather than its working pressure, because that is what the hose sees if a valve closes downstream.

Bores from 6 mm to 50 mm are in the clear braided PVC hose range.
