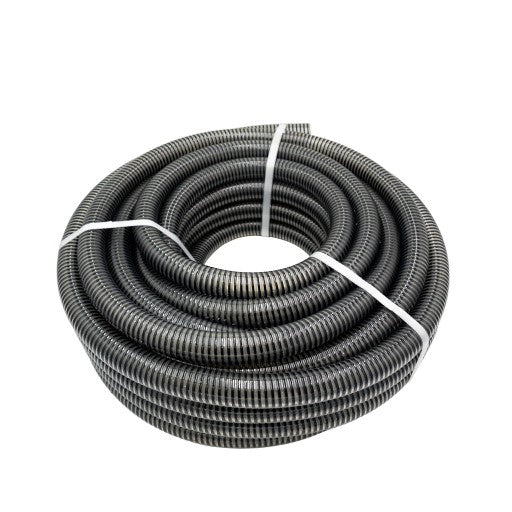

63mm PVC Food Suction Hose Black/Clear

Bulk suction and delivery at 63 mm bore and 74.4 mm outside diameter, and the surprise of the range: at 0.8 MPa (116 psi) at 20°C it is rated higher than both the 38 mm and 50 mm sizes, not lower. Clear PVC wall, black helix, smooth inside and out. Stock code PSHBC063.

Key features

• 63 mm bore, 74.4 mm outside diameter
• 0.8 MPa (116 psi) at 20°C
• -5°C to +60°C operating range
• Clear PVC with a black helix; smooth inner and outer wall
• Excellent UV and abrasion resistance
• AS/NZS 2070, plastics for food contact

Applications

• Tanker suction and discharge on food sites
• Larger pumps moving product between bulk vessels
• Air seeder and bulk material handling on machinery
• Mild chemical transfer at high flow

Compatibility and fitting

• Order clamps and couplings to the 74.4 mm outside diameter
• At this bore, camlocks are far quicker to change than tails and clamps — camlock couplings
• Same bore, tougher cover: 63mm rubber food suction hose
• Red-helix option for colour coded pump rooms: 63mm red and clear food suction hose

Why is the 63 mm rated higher than the 38 mm?

Because it is built with a heavier wall for bulk duty rather than scaled up from the smaller sizes. Do not assume the pressure falls as the bore rises across this range: check the figure for the size you are actually buying, which here is 0.8 MPa at 20°C.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
