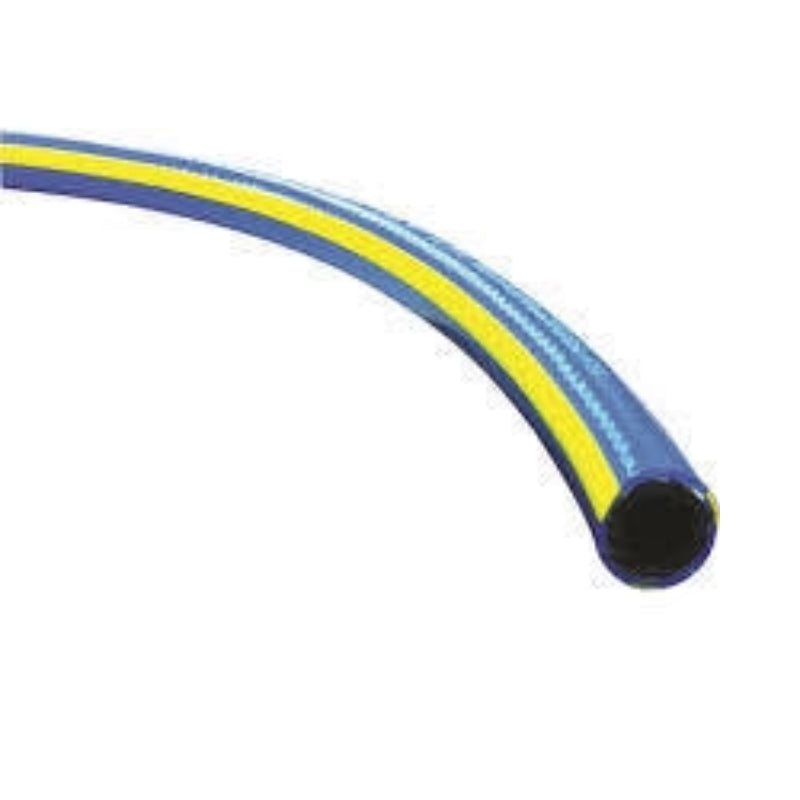

8mm Blue/Yellow PVC Air Hose

8 mm blue and yellow PVC air hose (part PHM08) is a light workshop air line, a step up from 6 mm where a little more flow is wanted without adding weight to the hose being dragged around. It is built from a black PVC smooth inner with high tenacity polyester yarn reinforcement and a blue PVC cover with a yellow stripe, and it stays flexible in the cold where cheap air hose goes stiff.

Key features

• Nominal inside diameter 8 mm, outside diameter 14 mm
• Working pressure 1.6 MPa (230 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS 2554 Class B
• High tenacity polyester yarn reinforcement
• Abrasion resistant cover with a smooth finish
• Flexible at low temperatures
• Cut to length or supplied in coils (20 m, 100 m and 300 m)

Applications

• Workshop air drops
• Pneumatic hand tools
• Tyre and inflation work
• Light spraying
• Mobile service rigs

Compatibility and fitting

• Fits a 8 mm hose tail; secure with a hose clamp, two per end on a pressurised line
• Quick connect couplings to suit are in the Nitto coupling range
• Also available made up with fittings, ready to plug in
• For oil resistant service, rubber multi purpose hose is the better choice

What does AS 2554 Class B mean?

It is the Australian standard for rubber and plastics hose for compressed air, and Class B is the general industrial class. It is worth checking for, because unrated air hose is a genuine safety problem at 230 psi.

Bores from 6 mm to 25 mm are in the blue and yellow air hose range.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
