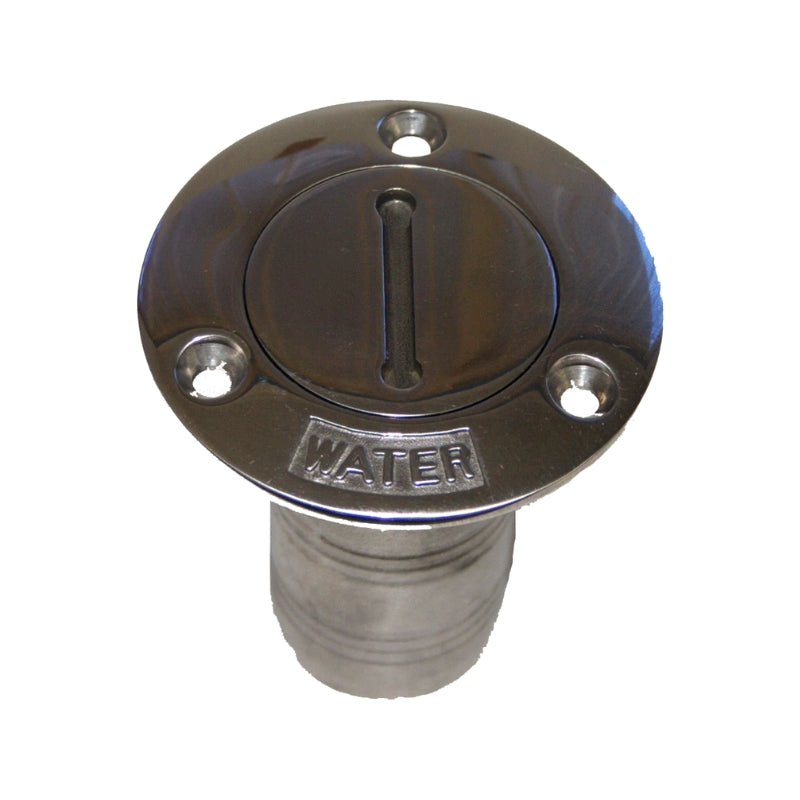

Stainless Steel Deck Filler

These deck fillers are not breathable, so a tank filled through one still needs a separate breather on the vent line. With that established: they are 316G stainless steel, flush mounted, with an O-ring seal to reduce water ingress, a cap retainer chain, a lockable cap with key included, and a straight hose connection. They are marked diesel, petrol, water or waste so the wrong hose does not go into the wrong fill.

Key features

• Marine grade 316G stainless steel
• Hose sizes 38 mm and 50 mm (1 1/2" and 2")
• Flange outside diameter 74 mm on the 38 mm filler and 89 mm on the 50 mm
• Cut out diameter 46 mm and 52 mm respectively
• Protrusion above deck 7 mm and 8 mm; intrusion below 76 mm and 82 mm
• Mount screws 5 mm countersunk
• Lockable cap with key, cap retainer chain and O-ring seal
• Non-breathable, straight hose connection

Applications

• Marine fuel, diesel, water and waste tank filling
• Recreational and commercial vessels
• New boat builds and replacement installations
• Deck pump-out points on holding tank systems

Compatibility and fitting

• Cut the deck to 46 mm for the 38 mm filler or 52 mm for the 50 mm, then fix with 5 mm countersunk screws
• Allow 76 mm or 82 mm of clear depth under the deck for the intrusion
• Because the filler is not breathable, fit a separate vent: breathers are in skin fittings and marine products
• Fuel filler hose to suit is in fuel filler hose
• Waste fills pair with white marine sanitation hose

Does the deck filler vent the tank?

No. These fillers are specified as non-breathable, which means the tank needs its own breather line and vent fitting. Filling a tank with no working vent is slow at best and splits fittings at worst.

Which types are stocked in each size?

Diesel, petrol, water and waste in 38 mm, and diesel, petrol and water in 50 mm.
