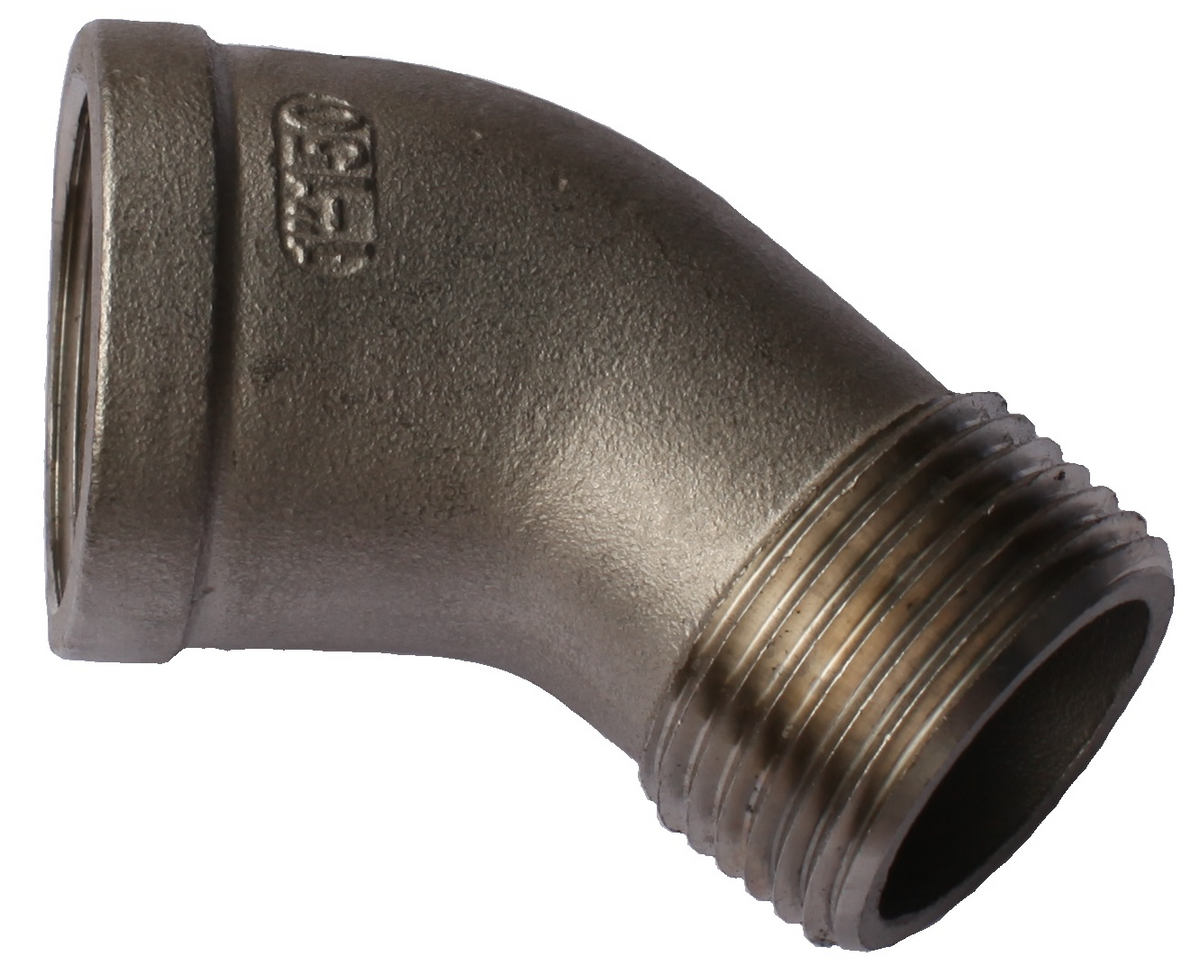

Stainless Steel Elbow M/F 45 Degrees

Forty-five degrees is what you reach for when a right angle would kink the hose or push the run into something. This elbow carries a male BSPT leg and a female leg, so it swings a line half a corner and lands ready for the next fitting. Seven sizes in 316 stainless, 1/2" through 2 1/2", to 150 psi maximum working pressure.

Key features

• 45 degree bend, male BSPT one end and female the other
• 316 stainless steel
• 150 psi maximum working pressure
• Seven sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" and 2 1/2"
• Supplier states suitability for water, fuel and oil

Applications

• Easing a suction hose into a pump inlet without a tight radius at the tail
• Routing around a tank shoulder or a bulkhead corner
• Two 45s in series to make a soft offset in a threaded run
• Deck fittings on boats where a 90 fouls the coaming

Compatibility and fitting

• Male leg screws into a female port; the female leg accepts a male BSP fitting
• For a full corner, see the 90 degree M/F elbow
• Female both ends is available as the female 45 degree elbow
• Finish onto hose with a stainless hose tail

When is a 45 better than a 90?

Whenever the bend is being used to line something up rather than to turn it. Two 45s make an offset with far less pressure drop than two 90s, and on a suction line a softer bend is one less place for the hose to flatten.
