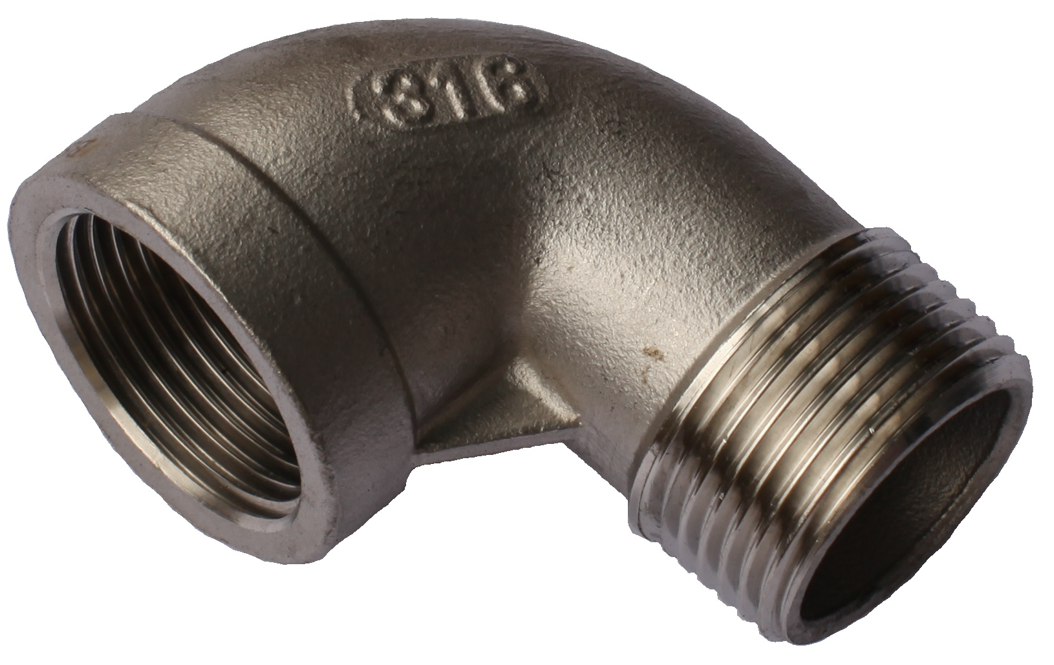

Stainless Steel Elbow M/F

This elbow turns a threaded run through 90 degrees with one fitting rather than two: male BSPT on one leg, female on the other, so it screws straight onto a male port and still leaves you a female to work into. Twelve sizes in 316 stainless from 1/8" to 4", each rated to a maximum working pressure of 150 psi.

Key features

• Male and female BSPT threads on the one fitting
• 316 stainless steel throughout the size run
• 150 psi maximum working pressure
• Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3" and 4"
• Suited by the supplier to water, fuel and oil service

Applications

• Taking a pump discharge out of a tight bay without a nipple and socket pair
• Turning a gauge or transmitter away from a wall
• Deck and bilge pipework on boats
• Caustic wash-down manifolds in food rooms

Compatibility and fitting

• Male leg goes into a female port; the female leg takes any male BSP fitting
• Where both ports are female, use the female BSP elbow instead
• For a gentler change of direction see the 45 degree M/F elbow
• Extend the run afterwards with a round socket
• Full range: stainless steel fittings

Why choose male/female over female/female?

A female/female elbow needs a nipple to land on a male port, which adds a joint, a length of thread and one more place to seal. The male/female pattern goes straight on. Order female/female only when both sides you are joining are already male.
