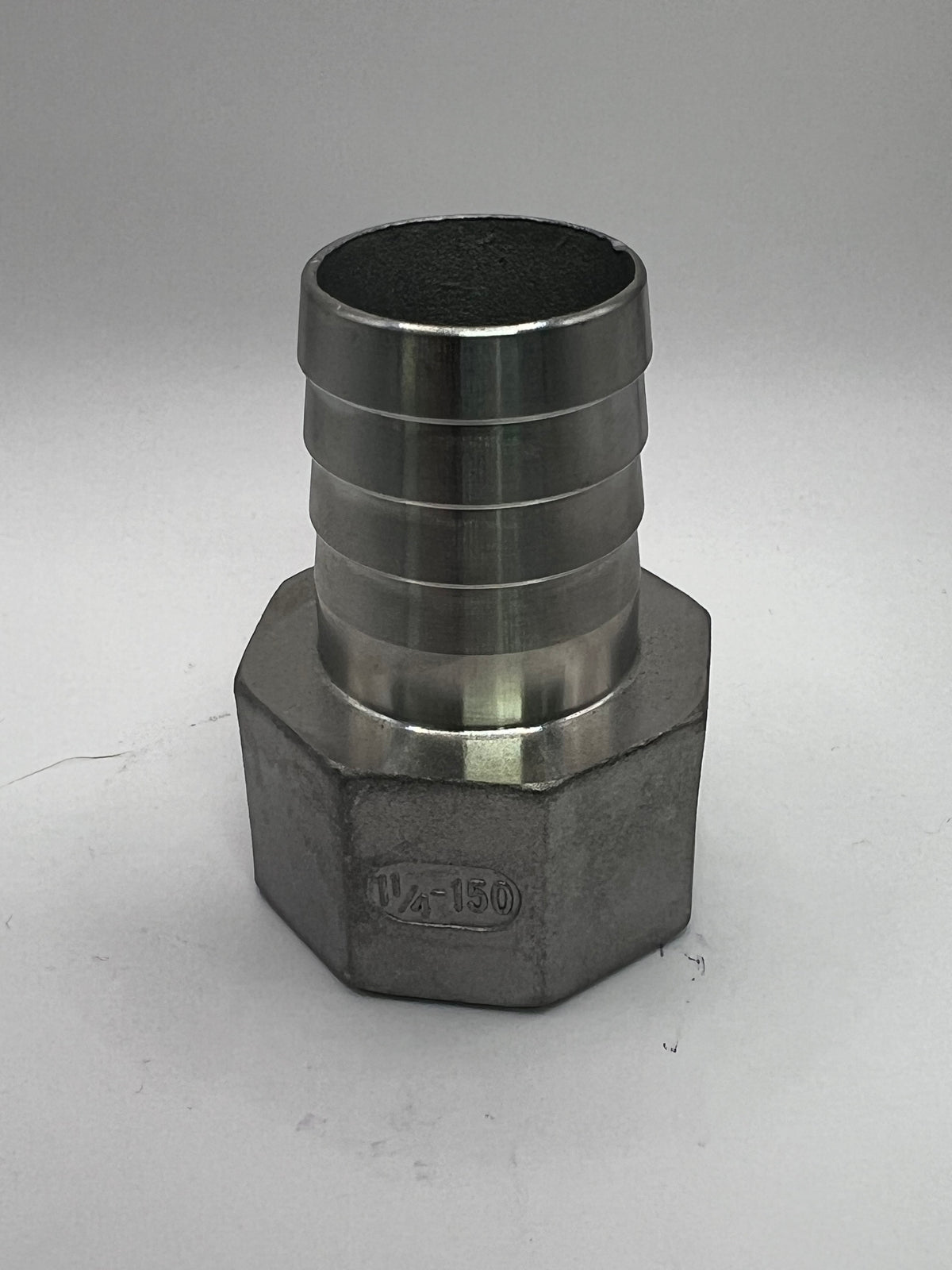

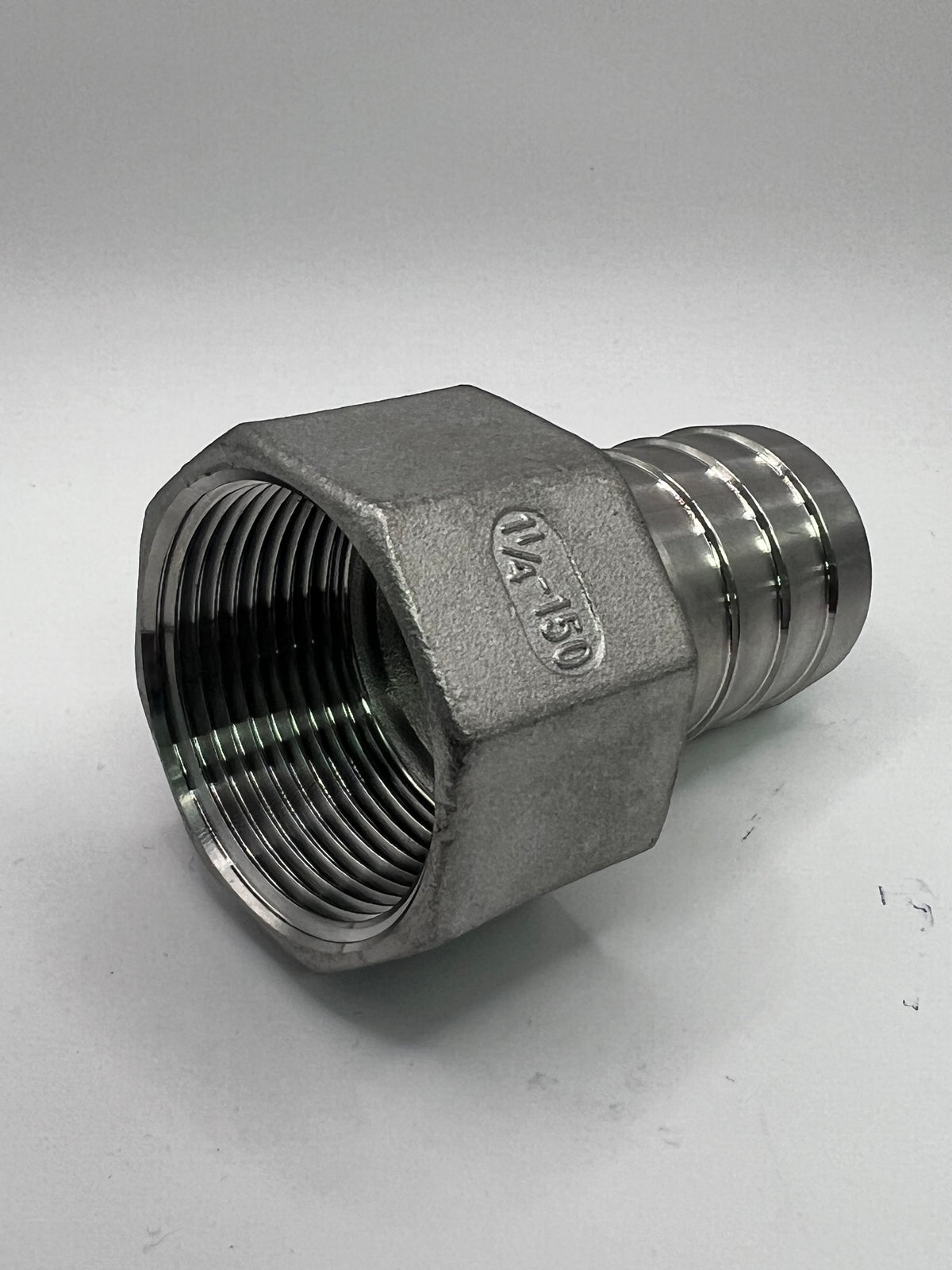

Stainless Steel Hose Tail x Female BSP

This hose tail carries a female BSP thread instead of a male one, so it screws down onto a male stub — a pump outlet, a tank nipple, a valve spigot — and takes the hose on the barbed end. The ten sizes are all matched, tail and thread the same, from 3/8" through to 4", rated to 150 psi maximum working pressure in 316 stainless.

Key features

• Female BSPT thread with a barbed shank for hose
• 316 stainless steel
• 150 psi maximum working pressure
• Ten matched sizes: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3" and 4"
• Supplier-rated for water, fuel and oil

Applications

• Putting a hose onto a male pump outlet without an adaptor
• Wash-down and transfer lines on trailers and skids
• Boat and pontoon plumbing exposed to salt
• Bulk transfer where a 3" or 4" hose lands on a threaded flange stub

Compatibility and fitting

• Hold the hose on the barb with a hose clamp sized to the hose outside diameter
• Where the port is female, order the hose tail x male BSP instead
• Screws onto a hex nipple if the tank boss is female
• For a quick-release hose end, see camlock couplings

Male tail or female tail?

Look at the port, not the hose. A threaded hole takes the male tail; a stub with a thread on the outside takes this female one. Getting it round the wrong way is the single most common reason a hose tail comes back, so check the port before you order.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
