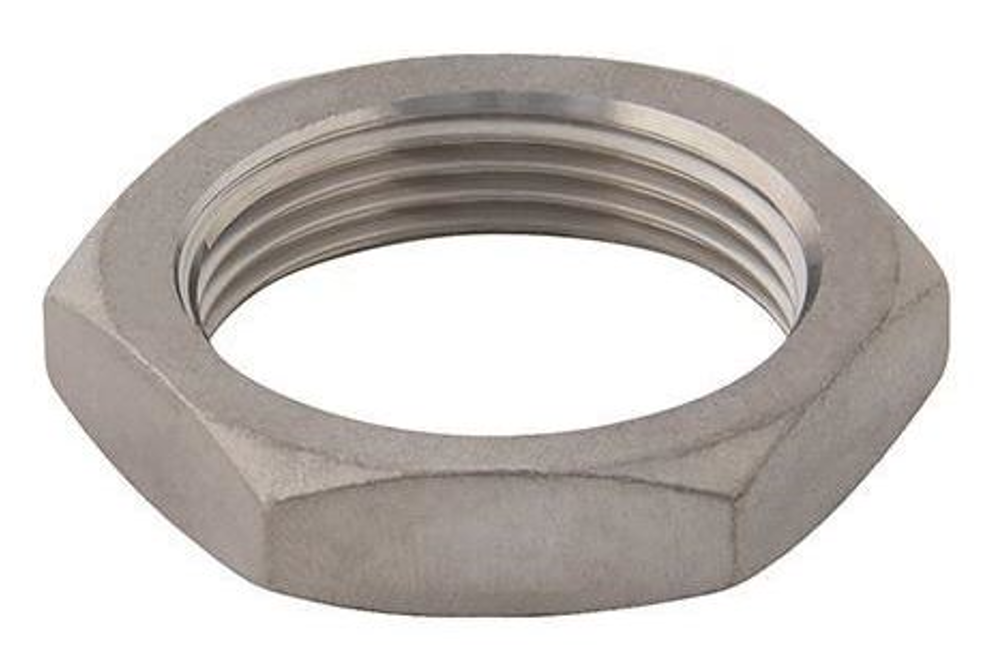

Stainless Steel Lock Nut

A lock nut is what holds a male thread in place once it has been pushed through a panel, a bulkhead or a tank wall. It winds on behind the plate and pulls the fitting up tight from the back. Four sizes in 316 stainless — 1/4", 3/8", 1/2" and 3/4" BSP — carrying the same 150 psi maximum working pressure as the rest of the threaded range.

Key features

• BSP thread, hexagonal for a spanner
• 316 stainless steel, so it will not seize onto a stainless thread with rust
• 150 psi maximum working pressure
• Four sizes: 1/4", 3/8", 1/2" and 3/4"
• Supplier lists the range for water, fuel and oil

Applications

• Securing a bulkhead fitting through a tank wall or a locker face
• Mounting a gauge or a small valve on a control panel
• Holding a through-deck fitting on a boat
• Setting the depth of a nipple in a fabricated bracket

Compatibility and fitting

• Winds onto any male BSP thread of the matching size, such as a hex nipple
• Use a sealing washer or a gasket against the panel; the nut clamps, it does not seal
• Pair with a stainless hose tail for a bulkhead hose connection
• More: stainless steel fittings

Why only four sizes?

Bulkhead work in this range is stocked from 1/4" to 3/4" only, which covers gauge, instrument and small hose connections. Larger panel mountings are normally made with a flange or a tank fitting rather than a threaded nut.
