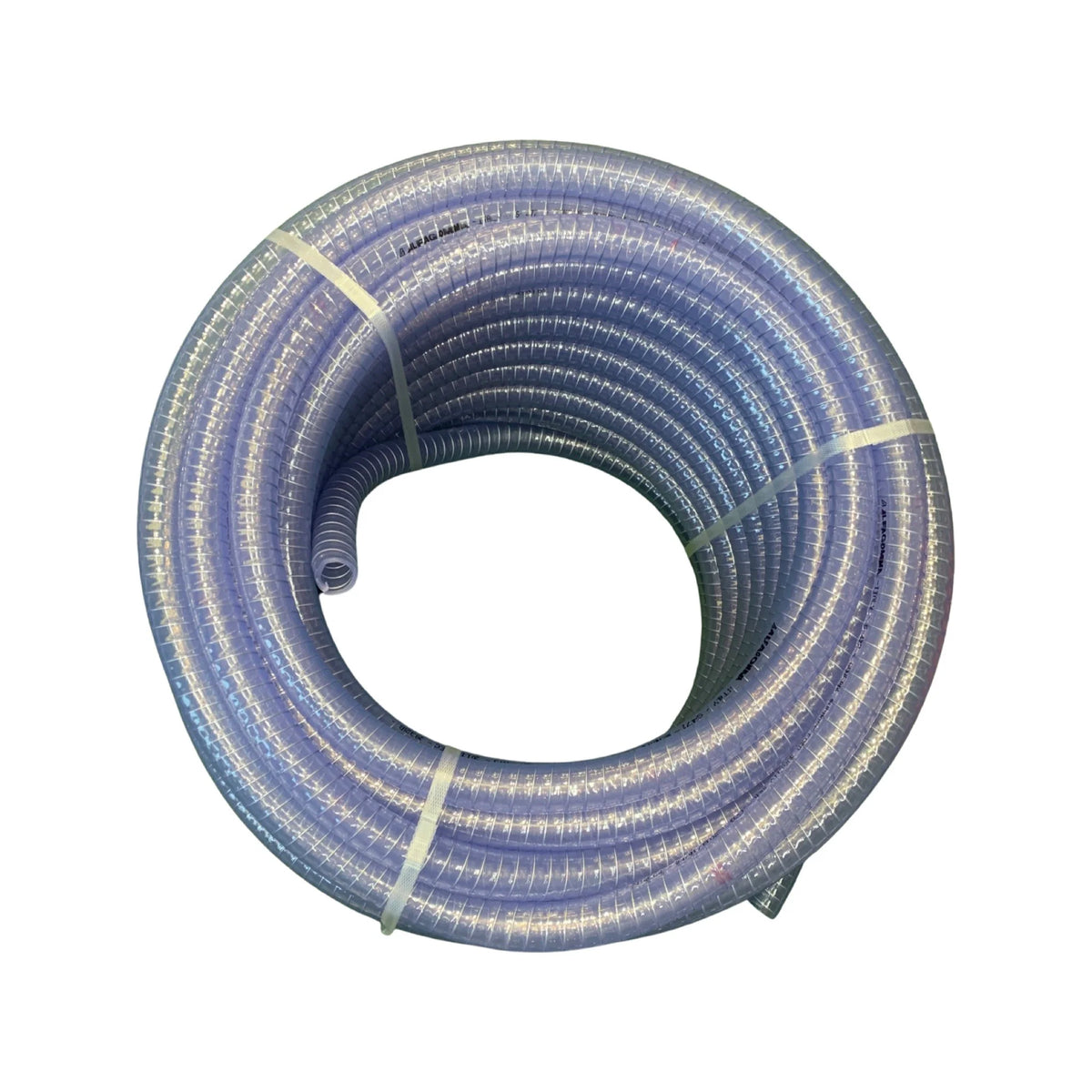

25mm Clear Wire Helix Food Suction Hose

Twenty-five millimetre bore, 33 mm outside, and the size most often asked for across wine, beer, juice and dairy work. Being fully transparent, it doubles as a sight glass: you can watch the product move and confirm the line has drained before a clean. Rated 75 psi at 20°C. Stock code HELI025.

Key features

• 25 mm bore with a 33 mm outside diameter
• Working pressure 75 psi at 20°C
• Operating temperature -5°C to +60°C
• Steel helix wire in a smooth-bore transparent PVC wall
• Conforms to FDA-EU 10/2011 A+B+C and AS 2070
• Cut lengths from 1 m to 20 m, plus 30 m and 60 m coils

Applications

• Winery racking and barrel-to-tank transfer
• Brewery hop-back, whirlpool and cellar transfer lines
• Juice, syrup and liquid sugar handling
• Drinking water on mobile food plant
• CIP return lines within the temperature range

Compatibility and fitting

• A 25 mm barbed tail and two clamps is the standard end; see hose clamps
• For a hose swapped between vessels through the shift, fit camlock couplings
• Where the hose is dragged across a yard, rubber food suction hose lasts longer
• Same bore with a coloured helix: black and clear PVC food suction hose

Does the clear wall stain?

Red wine and concentrated juice will tint a clear PVC wall over time, which is cosmetic rather than structural. If the hose is a permanent line on a dark product, a coloured-helix hose hides it; if the point is watching the line drain, stay clear and rinse promptly.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
