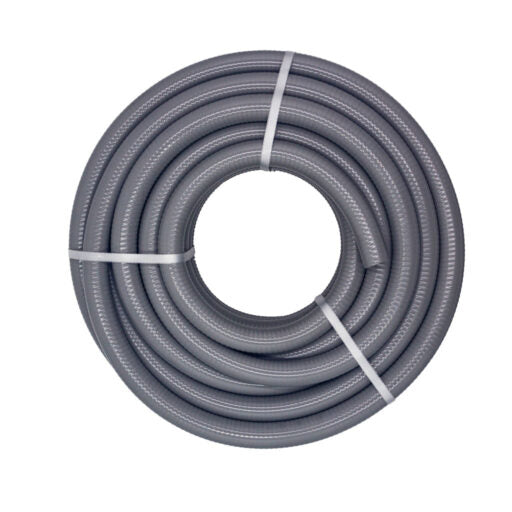

38mm PVC Water Suction Hose Grey

The 38 mm (1.5") grey suction hose, PSHG040, is the standard inlet hose for a 1.5 inch fire-fighting or transfer pump. Its rigid PVC helix stops the wall closing when the pump goes to vacuum, which is the whole difference between a suction hose and everything else on a pump. Outside diameter is 46.1 mm and the rating is 0.7 MPa (101 psi) at 20°C. Stocked as a 20 m coil.

Key features

• 38 mm bore, 46.1 mm outside diameter
• 0.7 MPa (101 psi) at 20°C
• Grey PVC wall carrying a rigid PVC helix for vacuum service
• Conforms to AS/NZS 2070
• Temperature -5°C to +60°C
• 20 m coil

Applications

• Inlet hose for 1.5 inch fire-fighting pumps
• Irrigation pump suction from a dam, creek or channel
• Water cartage fill lines
• Pumping muddy water and light slurry off a site
• Tanker and vacuum unit suction

Compatibility and fitting

• Uses a 38 mm hose tail or camlock; see the camlock range
• Fit a foot valve or strainer at the water end so the pump keeps prime
• Clamp to the 46.1 mm outside diameter with a hose clamp at each barb
• The discharge leg on this pump size is usually 40 mm or 50 mm blue layflat hose
• For abrasive slurry rather than water, see yellow tail abrasive suction hose

Why is this listed as 38 mm when the pump is a 1.5 inch?

38 mm is the metric equivalent of a 1.5 inch bore, and it is the size the supplier publishes. Fittings sold as 1.5 inch and as 38 mm are the same thing.

Does suction hose have to match the pump inlet exactly?

Match it, and avoid going smaller. An undersized suction hose starves the pump and increases the chance of cavitation, which is far more damaging than an oversized inlet line.
