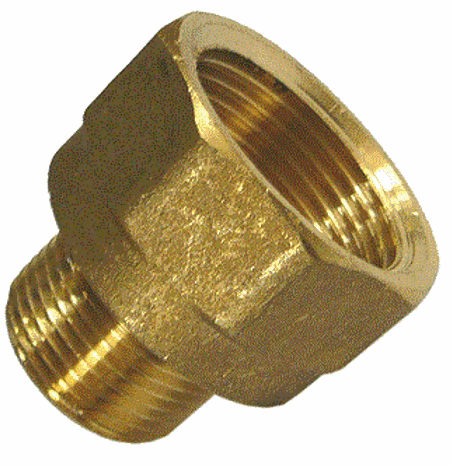

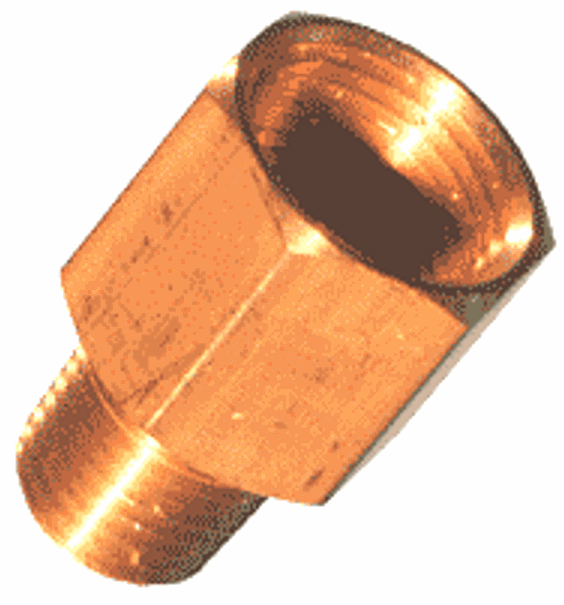

Screwed Brass Adaptor Male Female

The No. 72 adaptor is male at one end and female at the other, usually in two different sizes, so it changes thread size in a straight run without turning a corner. It is the fitting that makes a 3/8 inch outlet accept a 1/4 inch line.

Key features

• Male BSP one end, female BSP the other
• Changes thread size in a straight run
• Combinations from 1/8 inch x 1/8 inch through to 1/2 inch and above
• Adds minimal length compared with a nipple and socket
• Manufactured to AS 1722 and AS 3688
• Pressure rated to 3500 kPa (500 psi)
• Temperature range 0°C to +120°C
• BSP threads
• Cast or extruded brass for corrosion resistance

Applications

• Adapting mismatched threads in a run
• Fuel and oil line transitions
• Natural gas and LPG work
• Water and lubrication systems
• Instrument and gauge connections

Compatibility and fitting

• Specify both threads: the female size and the male size
• Where you are joining two female ports, use a nipple instead
• Seal tapered threads with tape or a sealant rated for the fluid
• Brass into brass strips easily: tighten to seal, not to a hard stop
• Do not mix thread standards: a fitting cut to a different standard will start, feel tight and then weep

Adaptor or reducing bush?

The bush sits inside a port and reduces it. The adaptor extends the run and changes gender as well as size. If you need the connection to move outward, take the adaptor.

Male or female first?

Quote the female size then the male, matching how the variants are listed, so there is no ambiguity about which end is which.
