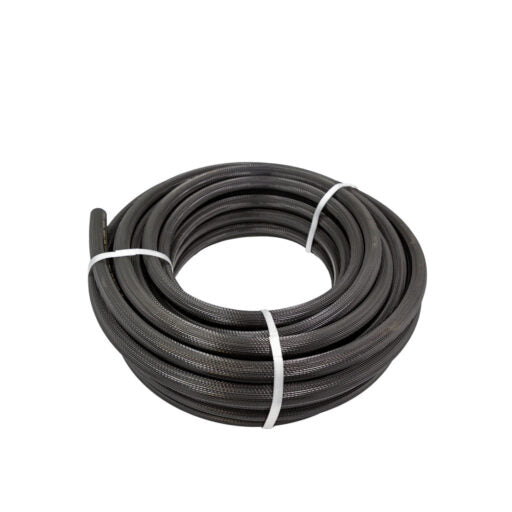

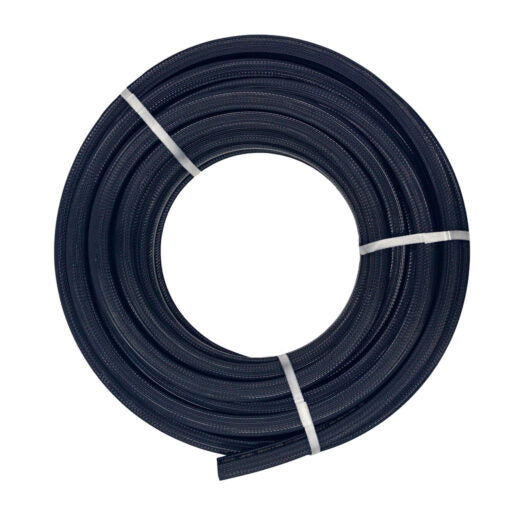

25mm Fire Reel Hose

The 25 mm fire reel hose is the larger bore option where a reel has to deliver more water than a standard 20 mm drum will pass, on bigger sheds, farm fire units and industrial reels. Nominal inside diameter is 25 mm with a 34.1 mm outside diameter, so check the drum tail and roller gap before ordering. It conforms to AS/NZS 1221, is rated 1 MPa (145 psi) at 20°C with a 4:1 safety factor, and comes in two roll lengths.

Key features

• 25 mm nominal inside diameter, 34.1 mm outside diameter
• Conforms to AS/NZS 1221
• Smooth black PVC bore under a ribbed UV stabilised black cover
• High tenacity polyester yarn reinforcement
• Working pressure 1 MPa (145 psi) at 20°C, 4:1 safety factor
• Operating temperature -5°C to +60°C
• Rolls of 20 m (PHFH25/20) and 100 m (PHFH25/100)

Applications

• Larger fire hose reels on industrial sites
• Farm fire units and rural fire fighting lines
• Higher flow reels feeding a 25 mm nozzle
• Contractors re-hosing multiple reels from a single 100 m roll
• Heavy duty general water delivery off a reel

Compatibility and fitting

• Match the nozzle to the bore; the 25 mm power jet nozzle is under fire products
• A 25 mm hose on a drum built for 20 mm will overfill it, so confirm the drum capacity first
• The 20 mm size is on fire reel hose

Will 25 mm hose fit a standard reel?

Usually not. Most reels are built around 20 mm hose, and the 34.1 mm outside diameter of this size needs a wider roller gap and a bigger drum. Measure before you buy a full roll.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
