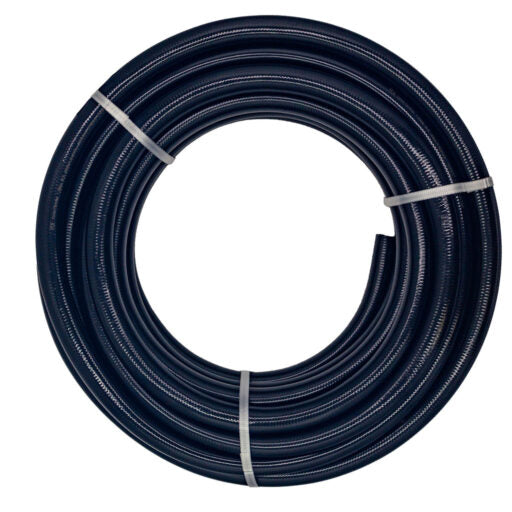

25mm PVC Farm Pump Hose
Prices include GST. Shipping calculated at checkout.
Pickup available at Brisbane
Usually ready in 2-4 days
- Australia-wide delivery
- Brisbane warehouse pickup
- Secure checkout
- (07) 3890 3359
Need a large quantity? Contact our trade team for pricing.
Description
PHDRUM25 is the hose that goes on a hand operated drum pump for diesel, which is why it is built from a PVC and nitrile blend rather than plain PVC: the nitrile content is what gives it resistance to diesel fuel and mineral oils. The smooth cover means it wipes clean rather than holding fuel in a ribbed surface, and the UV stability lets it live on a drum in a farm shed or out in a yard. Nominal bore is 25 mm with a 32.5 mm outside diameter, rated 1.6 MPa (230 psi) at 20°C to a 4:1 safety factor.
Key features
- 25 mm nominal bore, 32.5 mm outside diameter
- Black PVC and nitrile blend inner with a smooth finish
- UV stabilised black PVC and rubber blend outer, smooth
- Resistant to diesel fuel and mineral oils
- Reinforced with high tenacity polyester yarn
- Working pressure 1.6 MPa (230 psi) at 20°C, 4:1 safety factor
- Operating temperature -5°C to +60°C
- Supplied in 10 m, 20 m and 100 m lengths
Applications
- Diesel transfer with hand operated drum pumps
- Gravity feed from a drum or elevated tank
- Farm and workshop fuel decanting
- Filling machinery and generator tanks from a drum
- Mineral oil transfer around a shed
Compatibility and fitting
- Fits a 25 mm hose tail; clamp with a band sized to the 32.5 mm outside diameter from hose clamps
- This is a delivery hose with no helix, so it must not go on a pump inlet under vacuum
- For a suction line use rubber petrol and oil suction hose
Can it be used on a powered fuel transfer pump?
On the delivery side, within the 230 psi rating. The supplier lists it for hand operated drum pumps and gravity applications, so for a powered installation confirm the pump's discharge pressure against that figure first.
Will it handle petrol as well as diesel?
The published resistance is to diesel fuel and mineral oils. Petrol is more aggressive, so use a hose specifically rated for it rather than assuming the nitrile content covers everything.
Product specifications
- Usage
- Diesel transfer with hand operated drum pumps and gravity applications
- Material
- Black PVC and nitrile blend inner, UV stabilised PVC and rubber blend outer
- Reinforcement
- High tenacity polyester yarn
- Working pressure
- 1.6 MPa (230 psi) at 20°C
- Temperature range
- -5°C to +60°C
- Inside diameter
- 25 mm
- Outside diameter
- 32.5 mm
- Length
- 10 m, 20 m and 100 m
- Colour
- Black
Shipping and returns
Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
