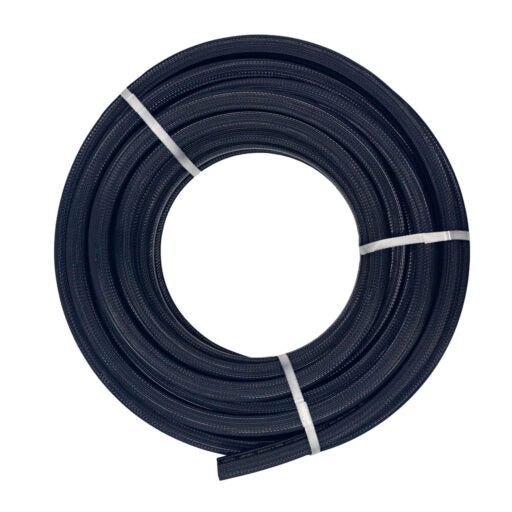

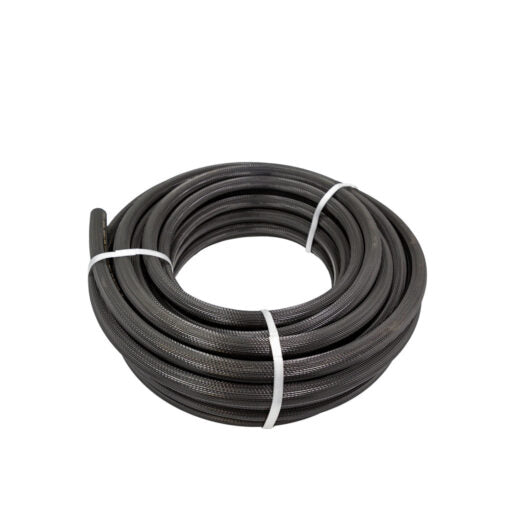

20mm Fire Reel Hose

This is the ribbed PVC hose fitted to fire hose reels in workshops, factories and rural sheds, and it conforms to AS/NZS 1221. It is sold as 20 mm but the nominal inside diameter is 19 mm with a 26 mm outside diameter, which is the figure to check against the tail on your reel drum. A smooth black PVC bore under a UV stabilised ribbed cover gives it the working pressure of 1 MPa (145 psi) at 20°C, manufactured to a 4:1 safety factor.

Key features

• Nominal inside diameter 19 mm, outside diameter 26 mm
• Conforms to AS/NZS 1221
• Black PVC smooth inner with a UV stabilised black ribbed PVC cover
• Reinforced with high tenacity polyester yarn
• Working pressure 1 MPa (145 psi) at 20°C, 4:1 safety factor
• Operating temperature -5°C to +60°C
• Rolls of 20 m (PHFH20), 36 m (PHFH20/36) and 100 m (PHFH20/100)

Applications

• Re-hosing a standard fire hose reel drum
• Fire fighting lines in workshops, factories and warehouses
• Rural shed and machinery shed reels
• General purpose water delivery where a tough ribbed hose is wanted
• Wash down runs on a reel that gets dragged over concrete

Compatibility and fitting

• Terminates on the reel tail and a nozzle; see fire products for power jet nozzles
• Buy a roll that matches the drum rather than joining offcuts, because a join will jam in the guide rollers
• Reel hardware is listed under hose reels

Why is a 20 mm reel hose actually 19 mm?

The 20 mm is the trade size; the published nominal bore is 19 mm and the outside diameter 26 mm. Measure the reel tail and the guide rollers against those figures, not against the name on the box.

Can it be used on a pump inlet?

No. This is a delivery hose with yarn reinforcement and no helix, so it will collapse under suction. A pump inlet needs a suction hose built to resist vacuum.
